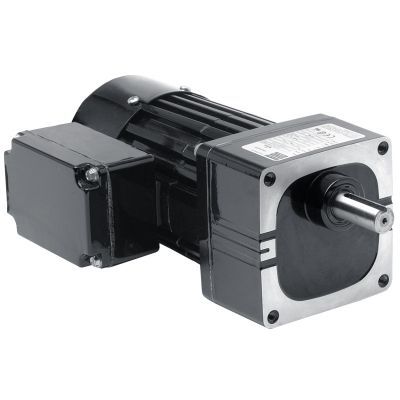

AC gear-motor Model 1484

single-phasespurhelical gear

Overview
Distributors, controls, wiring diagrams for Model 1484 Metric 34R-W Series Parallel Shaft AC Gearmotor.

SPECIFICATIONS
Speed (rpm): 21
Rated Torque (Nm): 16.5
Rated Torque (lb-in): 146
Power (Watts): 75
Power (HP): 1/10
Volts: 230
Hz: 50
Phases: 1
Amps: .60
Gear Ratio: 65.5
Radial Load (N): 575
Radial Load (lbs): 130
Length XH (mm): 234
Length XH (inch): 9.2
Weight (kg): 5.7
Weight (lbs): 12.8
Connection Diagram: 07410021
Capacitor Part Number: 49401154
Product Type: 34R6BFCI-W3
HPDecimal: 0.1

CAD Drawings

• Download PDF (product drawing)
• Download DWG (product drawing)
• Download STEP (product drawing)

Wiring Diagram

• Wiring diagram (reference 07410021) available as downloadable PDF

Safety Data Sheets

• Imperial oil safety data sheet available as downloadable PDF

Optional Accessories

• L-Bracket Kit for W and WX gearmotors [model 0970]
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• L-Bracket Mounting Kit for metric type W gearmotors [model 1970]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 7.5MFD 370V [Item 49401154]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

STANDARD FEATURES

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and end shields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Wide reinforced thermoplastic helical primary gear for quietness and hardened steel spur gearing on subsequent stages for high output torque and long life.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Caractéristiques / Spécifications techniques

• Speed (rpm): 21
• Rated Torque: 16.5 Nm / 146 lb-in
• Power: 75 W (0.1 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: 1
• Current: 0.60 A
• Gear Ratio: 65.5
• Radial Load: 575 N / 130 lbs
• Length XH: 234 mm (9.2 in)
• Weight: 5.7 kg (12.8 lbs)
• Connection Diagram Reference: 07410021
• Capacitor Part Number: 49401154
• Product Type: 34R6BFCI-W3
