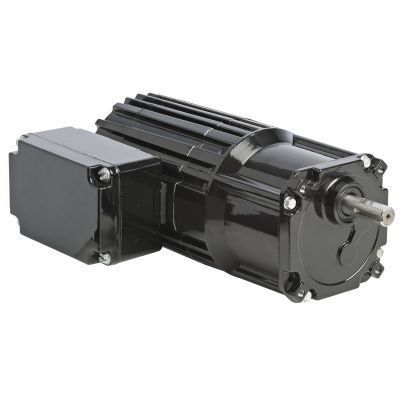

AC gear-motor Model 1449

single-phasespurhelical gear

Product
Model 1449 Metric 34R-Z Series parallel shaft AC gearmotor (Product Type: 34R4BFCI-Z4), single-phase, 230 V.

Specifications (summary)

• Speed (rpm): 7.8
• Rated Torque: 11.3 Nm (100 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage / Frequency: 230 V, 50 Hz
• Phases: Single-phase (1)
• Current: 0.5 A
• Gear Ratio: 180
• Radial Load Capacity: 555 N (125 lbs)
• Length XH: 217 mm / 8.54 in
• Weight: 4.5 kg / 10.1 lbs
• Connection Diagram: 07410021
• Capacitor Part Number: 49401068

Standard Features

• Metric mounting threads and metric drive-shaft dimensions for direct integration into metric systems.
• Totally enclosed design with IP-20 rating.
• Fan-cooled motor for sustained output at rated load.
• Class B insulation operated within Class A limits to extend winding and lubricant service life.
• Aluminum center ring and end shields for improved thermal dissipation and reduced mass.
• Unvented gearhousing to protect gearing in industrial environments.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout to increase radial load capacity.
• Permanently lubricated gearing using semi-fluid grease for long maintenance intervals.
• Wide reinforced thermoplastic helical primary gear for low noise; hardened steel spur gears on following stages for high output torque.
• Helical pinion precisely cut on motor shaft for maximum strength and reduced noise.

Optional Accessories

• L-Bracket kit for 34R-Z gearmotors (model 0980)
• Die-cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die-cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 5.0 µF / 400 V (item 49401068)
• Large die-cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Available CAD / Drawing / Wiring / Safety Resources

• CAD drawings available in PDF, DWG and STEP formats (model 1449)
• Wiring diagram available (Connection Diagram 07410021)
• Safety Data Sheet available

Technical specifications

• Speed (rpm): 7.8
• Rated Torque: 11.3 Nm (100 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage / Frequency: 230 V, 50 Hz
• Phases: 1 (single-phase)
• Current: 0.5 A
• Gear Ratio: 180
• Radial Load Capacity: 555 N (125 lbs)
• Length XH: 217 mm / 8.54 in
• Weight: 4.5 kg / 10.1 lbs
• Connection Diagram: 07410021
• Capacitor Part Number: 49401068
• Product Type: 34R4BFCI-Z4
