AC gear-motor Model 1571

single-phasespurhelical gear

Product

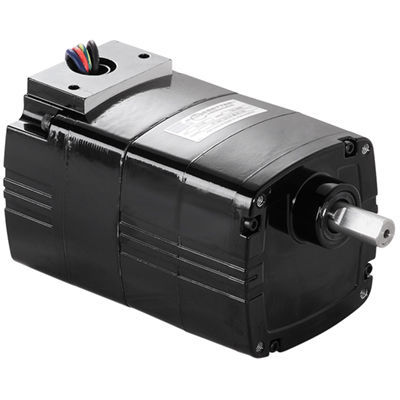

Parallel shaft AC gearmotor Model 1571, Metric 30R-D series.

Overview
Parallel shaft AC gearmotor designed for metric mounting threads and metric drive shaft dimensions. Totally enclosed, non-ventilated design with Class B insulation and aluminum end shields for improved thermal dissipation. Industrial seals and needle bearings provide enhanced radial load capacity and durability.

Specifications

• Speed (rpm): 117
• Rated Torque: 1.1 Nm (9.7 lb-in)
• Power: 18 W (0.0243 HP)
• Voltage / Frequency: 230 V / 50 Hz
• Phase: Single-phase
• Current: 0.21 A
• Gear Ratio: 12
• Radial Load Capacity: 285 N (65 lbs)
• Length XH: 139.2 mm (5.5 in)
• Weight: 2.8 kg (6.3 lbs)
• Connection Diagram: 07410021
• Capacitor Part Number: 49400091
• Product Type: 30R2BECI-D3

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed, non-ventilated (IP-20).
• Class B insulation system.
• Aluminum end shields for thermal efficiency and reduced weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long service life.
• Permanently lubricated gearing.
• Reinforced thermoplastic helical primary gear for quiet operation and hardened steel spur gears on subsequent stages for high output torque.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Optional Accessories

• L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products (model 1968)
• Die cast metric terminal box with terminal block for 30R motors and gearmotors (model 1982)
• Capacitor; plastic box type; 1.3 MFD / 450V (Item 49400091)
• L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors (model 5968)
• Die cast terminal box for 30R motors and gearmotors (model 5982)

Downloads
CAD drawings available (PDF, DWG, STEP). Wiring diagram available. Safety Data Sheets available.

Technical specifications

• Model: Model 1571
• Series: Metric 30R-D
• Speed: 117 RPM
• Rated Torque: 1.1 Nm (9.7 lb-in)
• Power: 18 W (1/41 HP, 0.0243 HPDecimal)
• Voltage / Frequency: 230 V / 50 Hz
• Phase: Single-phase
• Current: 0.21 A
• Gear Ratio: 12
• Radial Load Capacity: 285 N (65 lbs)
• Length XH: 139.2 mm (5.5 in)
• Weight: 2.8 kg (6.3 lbs)
• Connection Diagram: 07410021
• Capacitor Part Number: 49400091
• Product Type: 30R2BECI-D3
