AC gear-motor 1572

single-phasespurhelical gear

Product

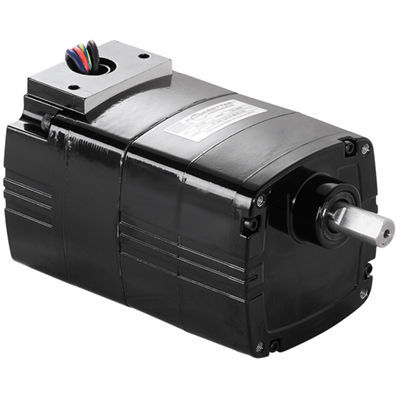

Model 1572 from the Metric 30R-D Series parallel shaft AC gearmotors. Single-phase 50 Hz, 230 V unit intended for low-speed, low-power industrial applications. Permanently lubricated gearing and metric mounting/drive-shaft dimensions simplify integration into metric systems.

SPECIFICATIONS
Speed (rpm): 78
Rated Torque (Nm): 1.6
Rated Torque (lb-in): 14
Power (Watts): 18
Power (HP): 0.0243 (≈1/41 HP)
Voltage: 230 V
Frequency: 50 Hz
Phase: 1
Current (A): 0.21
Gear Ratio: 18
Radial Load (N): 285
Radial Load (lbs): 65
Length XH (mm): 139.2
Length XH (inch): 5.5
Weight (kg): 2.8
Weight (lbs): 6.3
Connection Diagram: 07410021
Capacitor Part Number: 49400091
Product Type: 30R2BECI-D3

STANDARD FEATURES

• Metric mounting threads and metric drive shaft dimensions for direct compatibility with metric equipment.
• Totally enclosed, non-ventilated design (IP20).
• Class B insulation system suitable for typical industrial ambient conditions.
• Aluminum end shields for improved thermal behavior and reduced weight.
• Unvented gear housing to retain lubricants and reduce contamination ingress.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout to increase radial load capacity and service life.
• Permanently lubricated gearing to reduce maintenance needs.
• Reinforced thermoplastic helical primary gear for low noise and hardened steel spur gears on subsequent stages for high output torque and durability.
• Helical pinion precision-cut on motor shaft for maximum strength and reduced noise.

OPTIONAL ACCESSORIES

• L-bracket kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z products (model 1968).
• Die-cast metric terminal box with terminal block for 30R motors and gearmotors (model 1982).
• Capacitor, plastic box type, 1.3 µF / 450 V (part number 49400091).
• L-bracket kit for 30R and 33A motors and various gearmotor types (model 5968).
• Die-cast terminal box for 30R motors and gearmotors (model 5982).

DOCUMENTS & DRAWINGS
CAD drawings available in PDF/DWG/STEP formats, wiring diagram and safety data sheet references available for this model (documents provided on request).

Technical specifications

• Series: Metric 30R-D Series parallel shaft AC gearmotor
• Model: 1572
• Speed: 78 rpm
• Rated Torque: 1.6 Nm (14 lb-in)
• Power: 18 W (≈0.0243 HP / 1/41 HP)
• Voltage: 230 V AC
• Frequency: 50 Hz
• Phase: Single-phase
• Current: 0.21 A
• Gear Ratio: 18
• Radial Load Capacity: 285 N (65 lbs)
• Overall Length (XH): 139.2 mm / 5.5 in
• Weight: 2.8 kg / 6.3 lbs
• Connection Diagram Reference: 07410021
• Recommended Capacitor Part Number: 49400091
• Product Type Code: 30R2BECI-D3
