AC gear-motor Model 1683

single-phasehelical gearparallel-shaft

Product overview

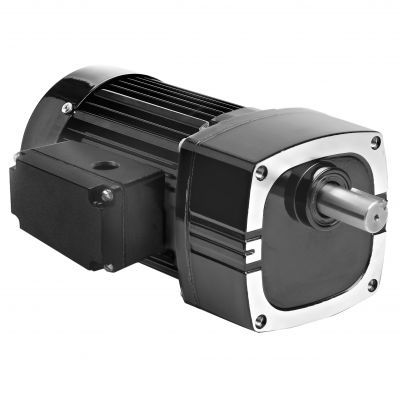

Model 1683 from the Metric 42R-E series is a parallel shaft AC gearmotor designed for metric mounting and metric drive shaft dimensions. The unit features an unvented gearhousing, industrial lip-type seals on motor and output shafts, needle bearings throughout and permanently lubricated semi-fluid grease gearing with selectively hardened helical gears for quiet operation and high output-to-size ratio.

CAD Drawings / Downloads

• PDF (CAD drawing / product information)
• DWG (CAD drawing)
• STEP (3D model)

Wiring and Safety

• Wiring diagram available (reference: wiring diagram 07410021)
• Safety Data Sheet available (imperial oil safety)

Optional accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

STANDARD FEATURES

• Metric mounting threads and metric drive shaft dimensions
• Unvented gearhousing
• Industrial lip type seals on motor and output shafts
• Needle bearings throughout for increased radial load capacity and long life
• Permanently lubricated gearing utilizing semi-fluid grease for long life
• Selective hardened helical gearing for quietness and high output-to-size ratio

Technical specifications

• Speed (rpm): 47
• Rated Torque (Nm): 16.7
• Rated Torque (lb-in): 148
• Power (Watts): 100
• Power (HP): 1/7.5
• Volts: 230
• Hz: 50
• Phases: 1
• Amps: 0.78
• Gear Ratio: 30
• Radial Load (N): 1300
• Radial Load (lbs): 300
• Length XH (mm): 231
• Length XH (inch): 9.08
• Weight (kg): 6.8
• Weight (lbs): 15.3
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-E3
• HP Decimal: 0.1333
