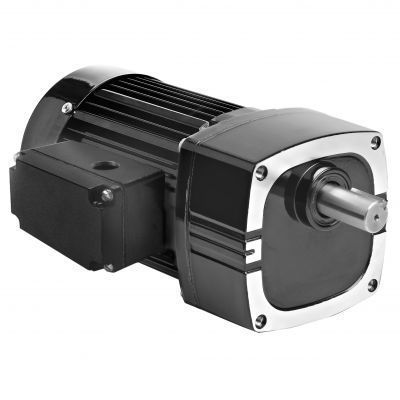

AC gear-motor Model 1669

single-phasehelical gearparallel-shaft

Product
Parallel shaft AC gearmotor Model 1669 — Metric 42R-E series. 100 W single-phase geared motor delivering 7.8 rpm (gear ratio 180) with rated torque 38.5 Nm.

Series / Category
Metric 42R-E Series — parallel shaft AC gearmotors for industrial drive and positioning applications.

Specifications (from product table)

• Speed (rpm): 7.8
• Rated Torque: 38.5 Nm / 341 lb-in
• Power: 100 W (0.1333 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: Single phase (1)
• Current: 0.78 A
• Gear Ratio: 180
• Radial Load Capacity: 900 N / 200 lbs
• Length XH: 231 mm / 9.08 in
• Weight: 6.8 kg / 15.3 lbs
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-E4

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing using semi-fluid grease.
• Selective hardened helical gears for quiet operation and high output-to-size ratio.

Optional Accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die-cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die-cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370 V (Item 49401154)
• Large die-cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Documents & Drawings (available types)
CAD drawings (PDF, DWG, STEP) for Model 1669; wiring diagram reference 07410021; safety data sheet (Imperial Oil Safety).

Technical specifications

• Model: 1669
• Series: Metric 42R-E
• Speed: 7.8 rpm
• Rated Torque: 38.5 Nm / 341 lb-in
• Power: 100 W (0.1333 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: 1 (single-phase)
• Current: 0.78 A
• Gear Ratio: 180
• Radial Load Capacity: 900 N / 200 lbs
• Length XH: 231 mm / 9.08 in
• Weight: 6.8 kg / 15.3 lbs
• Connection Diagram Reference: 07410021
• Capacitor Part Number: 49401154
• Product Type Code: 42R5BFCI-E4
