AC gear-motor Model 1685

helical gearparallel-shaft50 W...100 W

Product

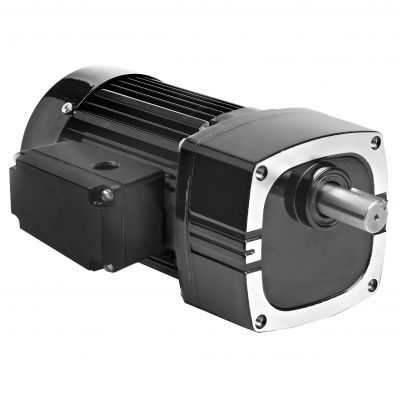

Metric 42R-E Series parallel shaft AC gearmotor, Model 1685. Product image title indicates: "Bodine Electric, 1685, 23 Rpm, 297.0000 lb-in, 2/15 hp, 230 ac."

Available Downloads (by type)
CAD drawings (PDF/DWG/STEP available via site download), wiring diagram (product-specific wiring diagram available), safety data sheets (related product material safety sheet available).

Optional Accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Selective hardened helical gearing for quietness and high output to size ratio.

Notes
All prices displayed on the site are in U.S. dollars. Web price excludes taxes, shipping, and handling charges. Availability shown for order quantities and stock; ordering and distributor channels indicated on site.
