AC gear-motor Model 1453

single-phasespurhelical gear

Product

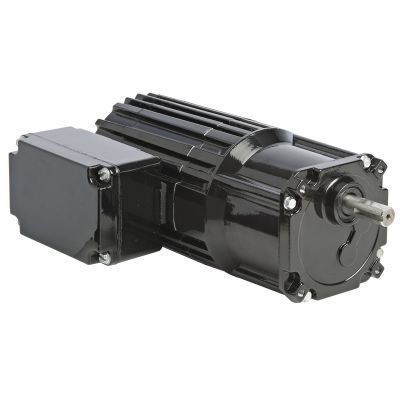

Model 1453 Metric 34R-Z Series Parallel Shaft AC Gearmotor

Specifications (page table)
Speed (rpm): 70
Rated Torque (Nm): 4.5
Rated Torque (lb-in): 40
Power (Watts): 50
Power (HP): 1/15
Volts: 230
Hz: 50
Phases: 1
Amps: 0.5
Gear Ratio: 20
Radial Load (N): 450
Radial Load (lbs): 100
Length XH (mm): 194
Length XH (inch): 7.64
Weight (kg): 4.5
Weight (lbs): 10.1
Connection Diagram: 07410021
Capacitor Part Number: 49401068
Product Type: 34R4BFCI-Z2
HPDecimal: 0.0667

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed, IP20 protection rating.
• Fan-cooled for high output power.
• Class B insulation system operated within Class A limits to prolong winding and lubricant life.
• Aluminum center ring and end shields for high thermal efficiency and light weight.
• Unvented gear housing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing using semi-fluid grease for extended service life.
• Wide reinforced thermoplastic helical primary gear for quiet operation and hardened steel spur gearing on subsequent stages for high output torque.
• Helical pinion accurately cut on motor shaft for maximum strength and reduced noise.

Optional Accessories

• L-Bracket Kit for 34R-Z gearmotors (model 0980)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 5.0 MFD / 400V (Item 49401068)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Available technical resources (listed on page)

• CAD drawings (PDF / DWG / STEP formats referenced)
• Wiring diagram (connection diagram referenced)
• Safety Data Sheet (referenced)

Technical specifications

• Model: 1453
• Series: Metric 34R-Z
• Speed: 70 rpm
• Rated torque: 4.5 Nm (40 lb-in)
• Power: 50 W (1/15 HP)
• Voltage: 230 V, 50 Hz, single phase
• Current: 0.5 A
• Gear ratio: 20
• Radial load capacity: 450 N (100 lbs)
• Length XH: 194 mm (7.64 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection diagram ref: 07410021
• Capacitor part number: 49401068
• Product type code: 34R4BFCI-Z2
