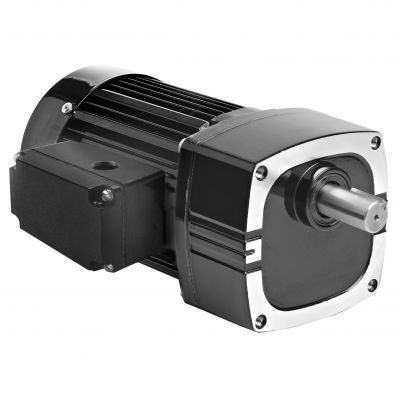

Model 1679 Metric 42R-E Series Parallel Shaft AC Gearmotor

Overview
Industrial parallel shaft AC gearmotor designed for metric mounting and metric shaft dimensions. Supplied with standard sealing and bearing features for continuous operation in general machinery and automation applications. Distributors, spare parts and technical documents are available.

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long service life.
• Permanently lubricated gearing using semi-fluid grease for extended maintenance intervals.
• Selective hardened helical gearing for quiet operation and high output-to-size ratio.

Optional Accessories

• L-bracket kit for E, F and FX gearmotors (model 0969)
• Die-cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-bracket mounting kit for metric type E/F gearmotors (model 1969)
• Die-cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370 V (Item 49401154)
• Large die-cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Available Downloads
CAD drawings (PDF, DWG, STEP) available. Wiring diagram and safety data sheet available for download.

Technical specifications

• Speed (rpm): 280
• Rated Torque (Nm): 2.9
• Rated Torque (lb-in): 25
• Power (Watts): 100
• Power (HP): 1/7.5
• Volts: 230
• Hz: 50
• Phases: 1
• Amps: 0.78
• Gear Ratio: 5
• Radial Load (N): 1300
• Radial Load (lbs): 300
• Length XH (mm): 231
• Length XH (inch): 9.08
• Weight (kg): 6.8
• Weight (lbs): 15.3
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-E1
• HP Decimal: 0.1333
