AC gear-motor Model 1671

single-phasehelical gearparallel-shaft

Product overview

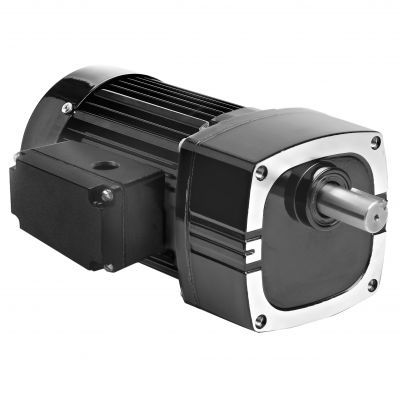

Model 1671 is a Metric 42R-E series parallel shaft AC gearmotor designed for metric mounting and shaft dimensions. It features an unvented gearhousing and industrial seals for reliable operation in industrial applications.

Series
Metric 42R-E Series Parallel Shaft AC Gearmotor

Key specifications

• Speed (rpm): 4.7
• Rated torque: 35 Nm (310 lb-in)
• Power: 100 W (1/7.5 HP, HP Decimal 0.1333)
• Voltage / Frequency: 230 V / 50 Hz
• Phases: Single-phase (1)
• Current: 0.78 A
• Gear ratio: 300
• Radial load capacity: 900 N (200 lbs)
• Length XH: 231 mm (9.08 in)
• Weight: 6.8 kg (15.3 lbs)

Standard features

• Metric mounting threads and metric drive shaft dimensions
• Unvented (sealed) gearhousing for contamination resistance
• Industrial lip-type seals on motor and output shafts
• Needle bearings throughout for increased radial load capacity and long life
• Permanently lubricated gearing using semi-fluid grease
• Selective hardened helical gearing for quiet operation and high output-to-size ratio

Optional accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370 V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical specifications

• Model: Model 1671
• Series: Metric 42R-E
• Speed (rpm): 4.7
• Rated torque: 35 Nm (310 lb-in)
• Power: 100 W (1/7.5 HP, HP Decimal 0.1333)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: Single-phase (1)
• Current (Amps): 0.78 A
• Gear ratio: 300
• Radial load capacity: 900 N (200 lbs)
• Length XH: 231 mm (9.08 in)
• Weight: 6.8 kg (15.3 lbs)
• Connection diagram: 07410021
• Capacitor part number: 49401154
• Product type: 42R5BFCI-E4
