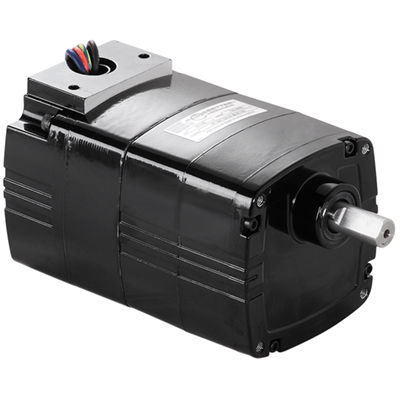

AC gear-motor 1573

single-phasespurhelical gear

Product
Parallel shaft AC gearmotor Model 1573 from the Metric 30R-D series. Single-phase unit with metric mounting and shaft dimensions, designed for applications requiring a 30:1 gear ratio and a nominal output speed of 47 rpm at 18 W.

Standard Features

• Metric mounting threads and metric drive shaft dimensions
• Totally enclosed, non-ventilated enclosure with IP-20 rating
• Class B insulation system
• Aluminum end shields for improved thermal performance and reduced weight
• Unvented gearhousing
• Industrial lip-type seals on motor and output shafts
• Needle bearings throughout for increased radial load capacity and long service life
• Permanently lubricated gearing
• Reinforced thermoplastic helical primary gear for low noise and hardened steel spur gearing on subsequent stages for high output torque
• Helical pinion precisely cut on the motor shaft for maximum strength and minimum noise

Resources

• CAD drawings: PDF, DWG, STEP (available for model 1573)
• Wiring diagram: PDF (Connection diagram number 07410021)
• Safety data sheets: PDF

Optional Accessories

• L-bracket kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z products (model 1968)
• Die-cast metric terminal box with terminal block for 30R motors and gearmotors (model 1982)
• Capacitor; plastic box type; 1.3 µF / 450 V (Item 49400091)
• L-bracket kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors (model 5968)
• Die-cast terminal box for 30R motors and gearmotors (model 5982)

Technical Specifications

• Speed (rpm): 47
• Rated torque (Nm): 2.7
• Rated torque (lb-in): 24
• Power (W): 18
• Power (HP): 1/41
• HP (decimal): 0.0243
• Voltage (V): 230
• Frequency (Hz): 50
• Phases: 1
• Current (A): 0.21
• Gear ratio: 30
• Radial load (N): 285
• Radial load (lbs): 65
• Length XH (mm): 139.2
• Length XH (inch): 5.5
• Weight (kg): 2.8
• Weight (lbs): 6.3
• Connection diagram: 07410021
• Capacitor part number: 49400091
• Product type: 30R2BECI-D3
