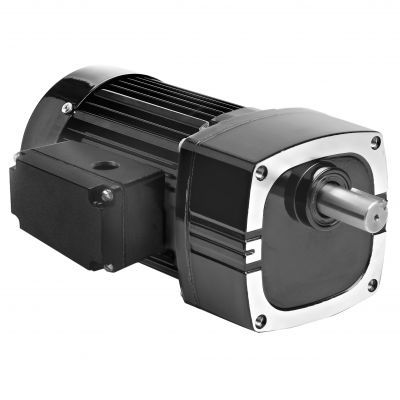

AC gear-motor Model 1680

single-phasehelical gearparallel-shaft

Product
Model 1680 - Metric 42R-E Series Parallel Shaft AC Gearmotor designed for industrial applications requiring compact, metric-mounted gear reduction with moderate torque and speed.

Specifications
Speed (rpm) : 140
Rated Torque (Nm) : 5.6
Rated Torque (lb-in) : 50
Power (Watts) : 100
Power (HP) : 1/7.5
Volts : 230
Hz : 50
Phases : 1
Amps : 0.78
Gear Ratio : 10
Radial Load (N) : 1300
Radial Load (lbs) : 300
Length XH (mm) : 231
Length XH (inch) : 9.08
Weight (kg) : 6.8
Weight (lbs) : 15.3
Connection Diagram : 07410021
Capacitor Part Number : 49401154
Product Type : 42R5BFCI-E2
HP Decimal : 0.1333

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Selective hardened helical gearing for quietness and high output-to-size ratio.

CAD, Wiring & Safety Documents (available)

• CAD Drawings — PDF, DWG, STEP (product-specific CAD resources listed for Model 1680)
• Wiring Diagram — PDF (connection diagram reference 07410021)
• Safety Data Sheets — PDF (imperial oil safety sheet listed)

Optional Accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Notes
All specifications shown are product-specific for Model 1680. Web price excludes taxes, shipping, and handling charges.

Technical characteristics

• Speed: 140 rpm
• Rated Torque: 5.6 Nm (50 lb-in)
• Power: 100 W (0.1333 HP / 1/7.5 HP)
• Voltage: 230 V, 50 Hz, single phase
• Current: 0.78 A
• Gear Ratio: 10
• Radial Load Capacity: 1300 N (300 lbs)
• Overall Length (XH): 231 mm / 9.08 in
• Weight: 6.8 kg / 15.3 lbs
• Connection Diagram Reference: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-E2
