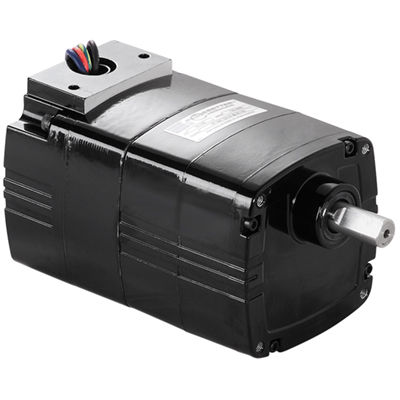

AC gear-motor 1574

single-phasespurhelical gear

Product Overview
Model 1574 Metric 30R-D Series Parallel Shaft AC Gearmotor. Designed for metric mounting and metric drive shaft dimensions, totally enclosed non-ventilated construction with Class B insulation and aluminum end shields for thermal efficiency and light weight.

Specifications Table
Speed (rpm): 23
Rated Torque (Nm): 4.5
Rated Torque (lb-in): 40
Power (Watts): 18
Power (HP): 1/41
Volts: 230
Hz: 50
Phases: 1
Amps: 0.21
Gear Ratio: 60
Radial Load (N): 285
Radial Load (lbs): 65
Length XH (mm): 139.2
Length XH (inch): 5.5
Weight (kg): 2.8
Weight (lbs): 6.3
Connection Diagram: 07410021
Capacitor Part Number: 49400091
Product Type: 30R2BECI-D3
HPDecimal: 0.0243

Downloads / Drawings

• CAD Drawings available for Model 1574: PDF, DWG, STEP.
• Wiring diagram reference: 07410021.
• Safety Data Sheet listed: Texaco Rando Material Safety Data Sheet.

Optional Accessories

• L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products (model 1968)
• Die cast metric terminal box with terminal block for 30R motors and gearmotors (model 1982)
• Capacitor; plastic box type; 1.3 MFD / 450V (Item 49400091)
• L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors (model 5968)
• Die cast terminal box for 30R motors and gearmotors (model 5982)

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally Enclosed, non-ventilated IP-20 rating.
• Class "B" insulation system.
• Aluminum end shields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing.
• Reinforced thermoplastic helical primary gear for quietness and hardened steel spur gearing on subsequent stages for high output torque and long life.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Additional Ordering & Price Info
Availability: Order quantity 1-25. Web price excludes taxes, shipping, and handling charges. All prices are in U.S. dollars.

Features / Technical specifications

• Speed: 23 rpm
• Rated Torque: 4.5 Nm (40 lb-in)
• Power: 18 W (1/41 HP; HPDecimal 0.0243)
• Voltage: 230 V, 50 Hz, single phase
• Current: 0.21 A
• Gear Ratio: 60
• Radial Load Capacity: 285 N (65 lbs)
• Length XH: 139.2 mm (5.5 in)
• Weight: 2.8 kg (6.3 lbs)
• Connection Diagram Ref: 07410021
• Capacitor Part Number: 49400091
• Product Type: 30R2BECI-D3
