AC gear-motor 1455

single-phasespurhelical gear

Product overview

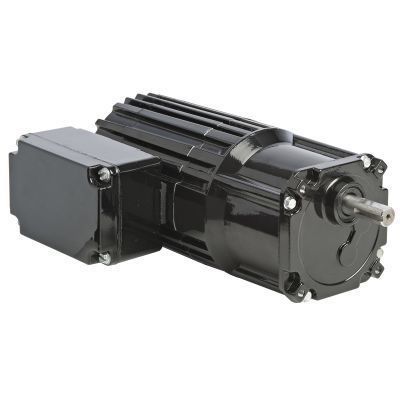

Parallel shaft AC gearmotor Model 1455 Metric 34R-Z Series by Bodine Electric. Designed for metric mounting and metric drive shaft dimensions; totally enclosed IP-20 and fan cooled for high output power.

Standard features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed, IP-20 rating.
• Fan cooled for high output power.
• Class B insulation operated within Class A limits to extend winding and lubricant life.
• Aluminum center ring and end shields for thermal efficiency and reduced weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing with semi-fluid grease for long life.
• Wide reinforced thermoplastic helical primary gear for quiet operation and hardened steel spur gearing on subsequent stages for high torque and durability.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Optional accessories

• L-Bracket Kit for 34R-Z gearmotors (model 0980).
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R (model 1984).
• Capacitor; plastic box type; 5.0 MFD / 400V (Item 49401068).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

Available downloads (product-related)
CAD drawings in PDF, DWG and STEP formats; Wiring diagram (PDF); Safety Data Sheets.

Table (specifications)
Speed (rpm): 23
Rated Torque (Nm): 11.3
Rated Torque (lb-in): 100
Power (Watts): 50
Power (HP): 1/15
Volts: 230
Hz: 50
Phases: 1
Amps: 0.5
Gear Ratio: 60
Radial Load (N): 555
Radial Load (lbs): 125
Length XH (mm): 217
Length XH (inch): 8.54
Weight (kg): 4.5
Weight (lbs): 10.1
Connection Diagram: 07410021
Capacitor Part Number: 49401068
Product Type: 34R4BFCI-Z3
HPDecimal: 0.0667
