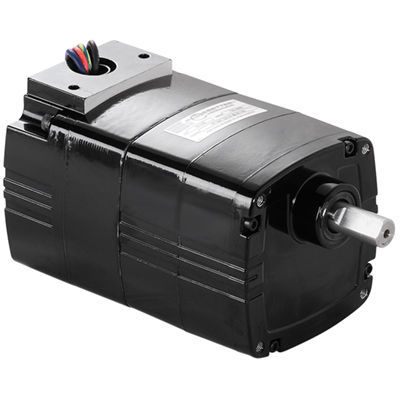

AC gear-motor 1562

single-phasespurhelical gear

Product Series
Metric 30R-D Series Parallel Shaft AC Gearmotor

Specifications
Speed (rpm): 7.8
Rated Torque (Nm): 4.5
Rated Torque (lb-in): 40
Power (Watts): 15
Power (HP): 1/48
Volts: 230
Hz: 50
Phases: 1
Amps: 0.17
Gear Ratio: 180
Radial Load (N): 285
Radial Load (lbs): 65
Length XH (mm): 132.8
Length XH (inch): 5.2
Weight (kg): 2.6
Weight (lbs): 5.9
Connection Diagram: 07410021
Capacitor Part Number: 49400091
Product Type: 30R1BECI-D4
HPDecimal: 0.0208

CAD Drawings / Files (available)

• InfM0348A (PDF drawing / model 1562)
• InfM0348A (DWG drawing / model 1562)
• InfM0348A (STEP file / model 1562)

Wiring Diagram

• Wiring diagram (07410021)

Safety Data Sheets

• Texaco Rando material safety data sheet (related lubricant SDS)

Optional Accessories

• L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z (model 1968)
• Die cast metric terminal box with terminal block for 30R motors and gearmotors (model 1982)
• Capacitor; plastic box type; 1.3 MFD / 450V (Item 49400091)
• Die cast terminal box for 30R motors and gearmotors (model 5982)

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally Enclosed, non-ventilated IP-20 rating.
• Class "B" insulation system.
• Aluminum end shields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing.
• Reinforced thermoplastic helical primary gear for quietness and hardened steel spur gearing on subsequent stages for high output torque and long life.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Technical specifications

• Model: Model 1562
• Series: Metric 30R-D Series
• Configuration: Parallel shaft AC gearmotor, single phase
• Speed: 7.8 rpm
• Rated torque: 4.5 Nm (40 lb-in)
• Power: 15 W (0.0208 HP / 1/48 HP)
• Voltage / Frequency: 230 V / 50 Hz
• Current: 0.17 A
• Gear ratio: 180
• Radial load capacity: 285 N (65 lbs)
• Length XH: 132.8 mm (5.2 in)
• Weight: 2.6 kg (5.9 lbs)
• Connection diagram reference: 07410021
• Recommended capacitor: item 49400091 (1.3 MFD / 450V)
