AC gear-motor Model 1477

single-phasespurhelical gear

Product

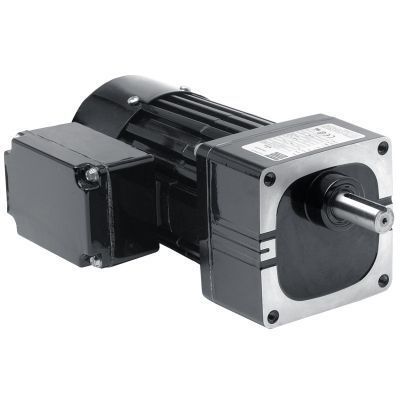

Model 1477 Metric 34R-W Series parallel shaft AC gearmotor for low-speed, high-torque industrial applications. Single-phase unit configured for 230 V, 50 Hz operation.

Specifications
Speed (rpm): 4.5
Rated Torque (Nm): 19.8
Rated Torque (lb-in): 175
Power (Watts): 75
Power (HP): 1/10
Volts: 230
Hz: 50
Phases: 1
Amps: 0.60
Gear Ratio: 312.4
Radial Load (N): 575
Radial Load (lbs): 130
Length XH (mm): 234
Length XH (inch): 9.2
Weight (kg): 5.7
Weight (lbs): 12.8
Connection Diagram: 07410021
Capacitor Part Number: 49401154
Product Type: 34R6BFCI-W4
HPDecimal: 0.1

Available Downloads / Drawings (listed on product page)

• CAD drawings: PDF, DWG, STEP (download options shown on product page)
• Wiring diagram (referenced by connection diagram number)
• Safety data sheet for lubricant (referenced on product page)

Optional Accessories

• L-bracket kit for W and WX gearmotors (model 0970)
• Die-cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-bracket mounting kit for metric type W gearmotors (model 1970)
• Die-cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die-cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed, IP-20 rated.
• Fan cooled for high output power.
• Class B insulation system operated within Class A limits to prolong winding and lubricant life.
• Aluminum center ring and end shields for high thermal efficiency and reduced weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing using semi-fluid grease for extended service life.
• Wide reinforced thermoplastic helical primary gear for quiet operation and hardened steel spur gearing on subsequent stages for high output torque.
• Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.

Notes
Single-phase 230 V, 50 Hz unit; gear ratio 312.4. Listed accessories and downloadable drawings/datasheets are provided on the product page.

Technical specifications

• Model: 1477
• Series: Metric 34R-W
• Speed (rpm): 4.5
• Rated Torque: 19.8 Nm / 175 lb-in
• Power: 75 W (0.1 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: 1
• Current: 0.60 A
• Gear Ratio: 312.4
• Radial Load: 575 N (130 lbs)
• Length XH: 234 mm (9.2 in)
• Weight: 5.7 kg (12.8 lbs)
• Connection Diagram Reference: 07410021
• Capacitor Part Number: 49401154
• Product Type: 34R6BFCI-W4
