AC gear-motor Model 1451

single-phasespurhelical gear

Product

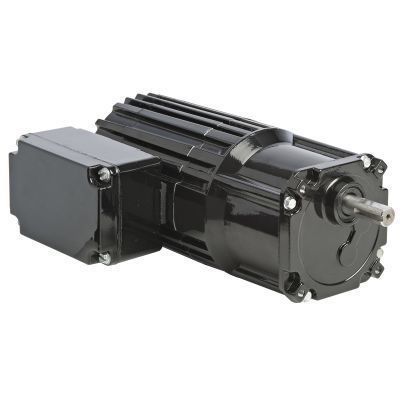

Model 1451 is a Metric 34R-Z series parallel shaft AC gearmotor providing 50 W output for compact single-phase industrial drive applications. Distributors, controls and accessories are available for this model.

Specifications
Speed (rpm): 233
Rated Torque (Nm): 1.4
Rated Torque (lb-in): 12
Power (Watts): 50
Power (HP): 1/15
Volts: 230
Hz: 50
Phases: 1
Amps: 0.5
Gear Ratio: 6
Radial Load (N): 450
Radial Load (lbs): 100
Length XH (mm): 194
Length XH (inch): 7.64
Weight (kg): 4.5
Weight (lbs): 10.1
Connection Diagram: 07410021
Capacitor Part Number: 49401068
Product Type: 34R4BFCI-Z2
HPDecimal: 0.0667

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed, protection rating IP20.
• Fan-cooled design for sustained output.
• Class B insulation operated within Class A limits to extend winding and lubricant life.
• Aluminum center ring and end shields for improved thermal efficiency and reduced weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout to increase radial load capacity and service life.
• Permanently lubricated gearing using semi-fluid grease.
• Wide reinforced thermoplastic helical primary gear for quiet operation and hardened steel spur gearing on subsequent stages for high torque and durability.
• Helical pinion accurately cut on motor shaft for maximum strength and reduced noise.

Optional Accessories

• L-Bracket Kit for 34R-Z gearmotors [model 0980]
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 5.0 MFD / 400V [Item 49401068]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

CAD / Drawings / Wiring / Safety

• CAD drawings available: PDF, DWG, STEP (product-specific files for Model 1451)
• Wiring diagram available (Connection Diagram ID: 07410021)
• Safety Data Sheet referenced for associated materials

Technical data

• Speed: 233 rpm
• Rated Torque: 1.4 Nm (12 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage: 230 V, 50 Hz, Single phase
• Current: 0.5 A
• Gear Ratio: 6
• Radial Load Capacity: 450 N (100 lbs)
• Overall Length XH: 194 mm (7.64 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection Diagram reference: 07410021
• Capacitor part number: 49401068
• Product Type: 34R4BFCI-Z2
