Three-phase gear-motor g500-H + m500
helical gearcoaxialsolid-shaft

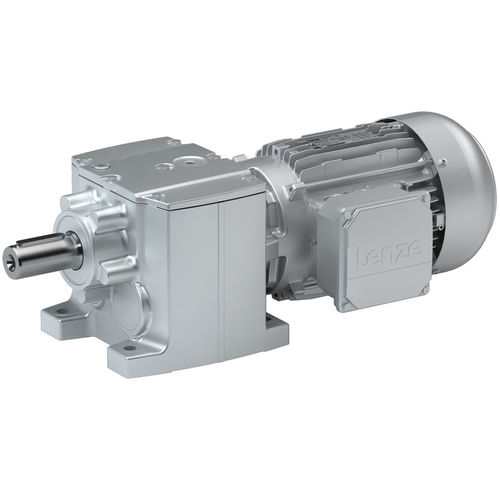

Three-phase gear-motor - g500-H + m500 - Lenze SE - helical gear / coaxial / solid-shaft
Three-phase gear-motor - g500-H + m500 - Lenze SE - helical gear / coaxial / solid-shaft
Three-phase gear-motor - g500-H + m500 - Lenze SE - helical gear / coaxial / solid-shaft - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW, 50 kW...100 kW
Torque
10 - 20 Nm, 1 - 5 Nm, 5 - 10 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Number of stages
three-stage, four-stage
Performance
low-backlash
Other characteristics
compact, IE3, IE2, modular
Gear ratio

Min.: 0 unit

Max.: 3,240 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

The robust and universally applicable helical geared motors are an axial drive unit and comply with efficiency classes IE2 and IE3. Thanks to the helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Robust axial gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Can be used universally due to the market-oriented modular system Easy connection via terminal box or conventional plug-in connectors for fast commissioning Can be combined with i510/i550 cabinet, i550 protec and i550/i650 motec frequency inverters
