Three-phase gear-motor g500-S + m500
helical gearparallel-shafthollow-shaft

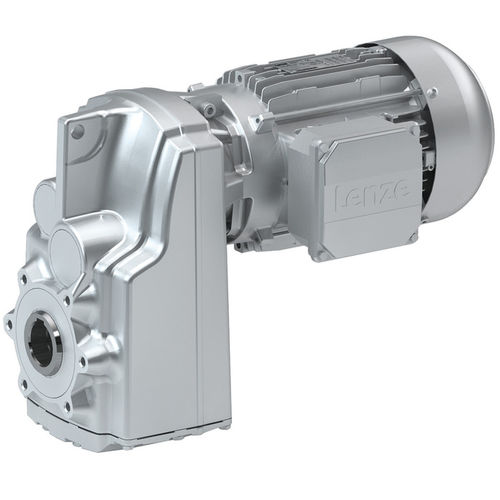

Three-phase gear-motor - g500-S + m500 - Lenze SE - helical gear / parallel-shaft / hollow-shaft
Three-phase gear-motor - g500-S + m500 - Lenze SE - helical gear / parallel-shaft / hollow-shaft
Three-phase gear-motor - g500-S + m500 - Lenze SE - helical gear / parallel-shaft / hollow-shaft - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
helical gear
Shaft orientation
parallel-shaft
Shaft configuration
hollow-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW, 50 kW...100 kW
Torque
5 - 10 Nm, 10 - 20 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Mounting
shaft-mounted
Number of stages
three-stage, four-stage
Performance
low-backlash
Other characteristics
compact, IE3, IE2, modular, IP55
Gear ratio

Max.: 4,640 unit

Min.: 0 unit

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The slim and space-saving shaft-mounted helical geared motors are a simple plug-on drive unit and comply with efficiency classes IE2 and IE3. Thanks to the shaft-mounted helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Slim shaft-mounted gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Can be used universally due to the market-oriented modular system Easy connection via terminal box or conventional plug-in connectors for fast commissioning Can be combined with i510/i550 cabinet, i550 protec and i550/i650 motec frequency inverters
