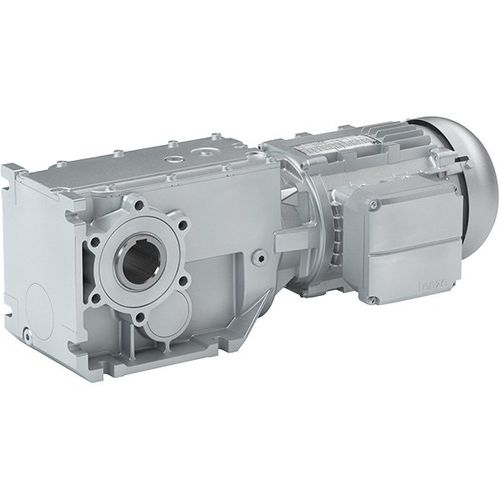

Three-phase gear-motor g500-B + MFbevelright anglehollow-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Type
- bevel
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW
- Torque
- 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Number of stages
- three-stage, four-stage
- Performance
- high-efficiency, low-backlash
- Other characteristics
- compact, IP55
- Gear ratio
Min.: 0 unit
Max.: 2,935 unit
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
The efficient bevel geared motors are a compact, powerful drive unit and optimized for 120 Hz operation on a frequency inverter.
Thanks to the bevel gearbox, they have high permissible radial forces, closely stepped ratios and a low backlash.
Highlights
High-efficient right-angle gearbox in a compact design
Market standard shaft dimensions and standardized flanges
Can be combined with i510/i550 cabinet, i550 protec and i550/i650 motec frequency inverters
Catalogs
No catalogs are available for this product.
See all of Lenze SE‘s catalogsOther Lenze SE products
Geared motors
