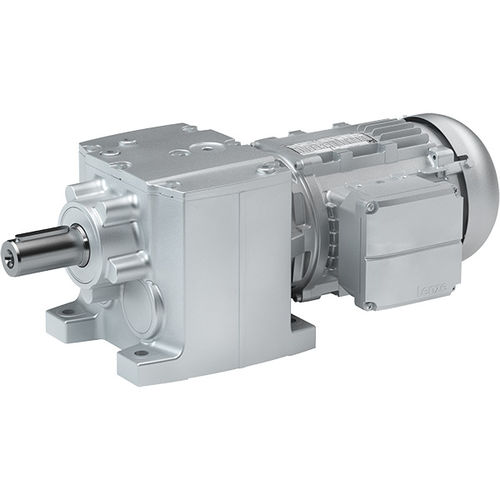

Three-phase gear-motor g500-H + MF
helical gearcoaxialsolid-shaft

Three-phase gear-motor - g500-H + MF - Lenze SE - helical gear / coaxial / solid-shaft
Three-phase gear-motor - g500-H + MF - Lenze SE - helical gear / coaxial / solid-shaft
Three-phase gear-motor - g500-H + MF - Lenze SE - helical gear / coaxial / solid-shaft - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Number of stages
three-stage, four-stage
Performance
low-backlash
Other characteristics
compact, IP55
Gear ratio

Min.: 0 unit

Max.: 3,240 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

The robust and universally applicable helical geared motors are an axial drive unit and optimized for 120 Hz operation on a frequency inverter. Thanks to the helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Robust axial gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Can be combined with i510/i550 cabinet, i550 protec and i550/i650 motec frequency inverters
