Three-phase gear-motor g500-B + m500
bevelright anglehollow-shaft

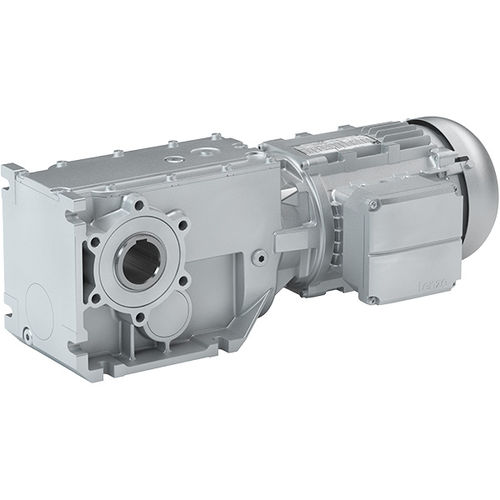

Three-phase gear-motor - g500-B + m500 - Lenze SE - bevel / right angle / hollow-shaft
Three-phase gear-motor - g500-B + m500 - Lenze SE - bevel / right angle / hollow-shaft
Three-phase gear-motor - g500-B + m500 - Lenze SE - bevel / right angle / hollow-shaft - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
bevel
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW, 50 kW...100 kW
Torque
500 - 1000 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Number of stages
three-stage, four-stage
Performance
low-backlash
Other characteristics
compact, IE3, IE2, modular, IP55
Gear ratio

Min.: 0 unit

Max.: 2,935 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

The efficient bevel geared motors are a compact, powerful drive unit and comply with efficiency classes IE2 and IE3. Thanks to the bevel gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Highly efficient right-angle gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Can be used universally due to the market-oriented modular system Easy connection via terminal box or conventional plug-in connectors for fast commissioning Can be combined with i510/i550 cabinet, i550 protec and i550/i650 motec frequency inverters
