Three-phase gear-motor g500-B + m500 + 8400 motec
bevelright anglehollow-shaft

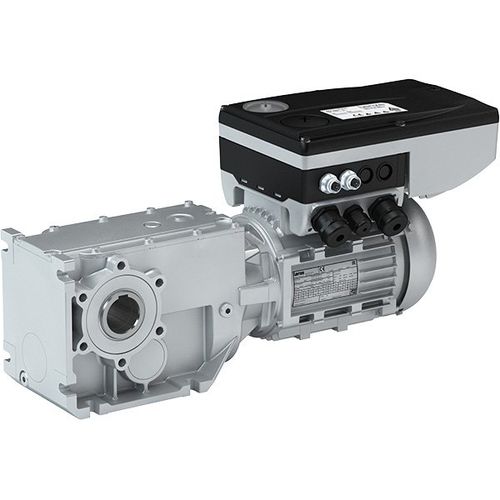

Three-phase gear-motor - g500-B + m500 + 8400 motec - Lenze SE - bevel / right angle / hollow-shaft
Three-phase gear-motor - g500-B + m500 + 8400 motec - Lenze SE - bevel / right angle / hollow-shaft
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
bevel
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW
Torque
5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Number of stages
three-stage, four-stage
Performance
high-efficiency, low-backlash
Other characteristics
compact, IE3, IP55, with integrated frequency inverters
Gear ratio

Max.: 2,935 unit

Min.: 0 unit

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The efficient bevel geared motors are a compact, powerful drive unit and can be controlled continuously with the integrated frequency inverter. They comply with efficiency class IE3. Thanks to the bevel gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Highly efficient right-angle gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Speed control via the integrated frequency inverter enables universal use
