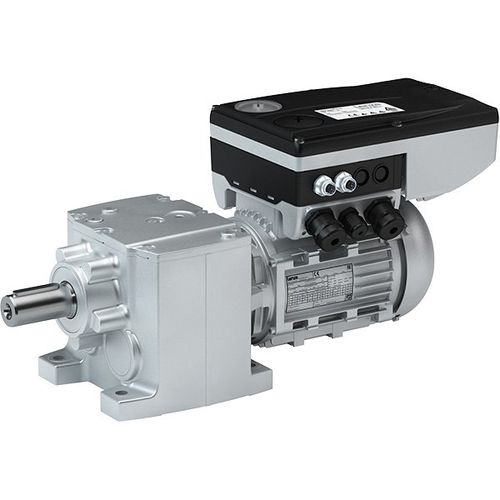

Three-phase gear-motor g500-H + m500 + 8400 motec
helical gearcoaxialsolid-shaft

Three-phase gear-motor - g500-H + m500 + 8400 motec - Lenze SE - helical gear / coaxial / solid-shaft
Three-phase gear-motor - g500-H + m500 + 8400 motec - Lenze SE - helical gear / coaxial / solid-shaft
Add to favorites
Compare this product

Characteristics

Motor type
three-phase
Type
helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Number of stages
three-stage, four-stage
Performance
low-backlash
Other characteristics
compact, IE3, IP55, with integrated frequency inverters
Gear ratio

Min.: 0 unit

Max.: 3,240 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

The robust and universally applicable helical geared motors are an axial drive unit and can be controlled continuously with the integrated frequency inverter. They comply with efficiency class IE3. Thanks to the helical gearbox, they have high permissible radial forces, finely graduated gear ratios and low torsional backlash. Highlights Robust axial gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Speed control via the integrated frequency converter enables universal use
