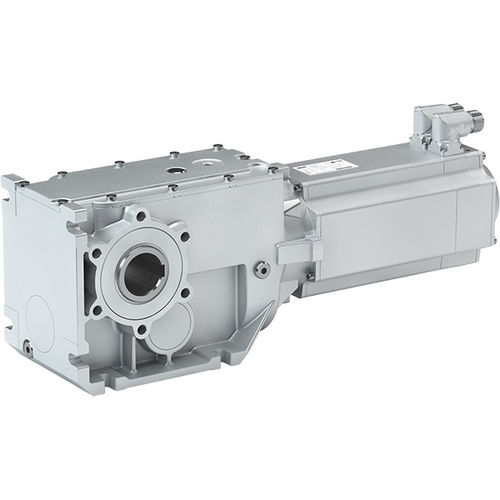

Synchronous servo-gearmotor g500-B + MCSbevelright anglehollow-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- synchronous
- Type
- bevel
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W, 500 W...1000 W, 2 kW...5 kW, 5 kW...10 kW, 1 kW...2 kW, 10 W...50 W
- Torque
- 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Performance
- low-backlash, high-efficiency, high load capacity
- Other characteristics
- compact, IP65, with encoder, IP54, with integrated inverter
- Gear ratio
Max.: 2,935 unit
Min.: 0 unit
- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
The efficient and highly dynamic synchronous bevel geared motors with good concentricity properties enable precise positioning with resolvers or single-cable encoders as feedback.
Thanks to the bevel gearbox, they have high permissible radial forces, closely stepped ratios and low backlash.
Highlights
Highly efficient right-angle gearbox in a compact design
Shaft dimensions in line with market standard and standardized flanges
Ensure top performance in even the tightest of spaces
Motor with high overload capacity and large angular accelerations
Adjusted for a combination with servo inverter
