Synchronous servo-gearmotor g500-H + MCS
helical gearcoaxialsolid-shaft

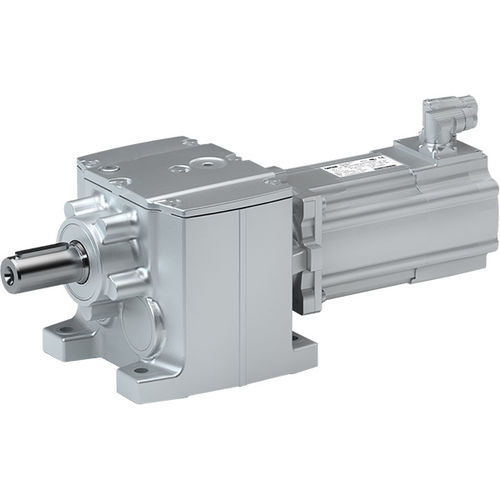

Synchronous servo-gearmotor - g500-H + MCS - Lenze SE - helical gear / coaxial / solid-shaft
Synchronous servo-gearmotor - g500-H + MCS - Lenze SE - helical gear / coaxial / solid-shaft
Add to favorites
Compare this product

Characteristics

Motor type
synchronous
Type
helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
100 W...500 W, 500 W...1000 W, 2 kW...5 kW, 5 kW...10 kW, 1 kW...2 kW, 20 kW...50 kW, 10 kW...20 kW
Torque
10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 1 - 5 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Number of stages
three-stage, four-stage
Performance
low-backlash, for heavy loads, high-performance
Product applications
with encoder
Other characteristics
compact, IP65, with encoder, IP54, with integrated inverter
Gear ratio

Max.: 3,240 unit

Min.: 0 unit

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The robust and universally applicable, highly dynamic synchronous helical geared motors with good concentricity properties enable precise positioning with resolvers or single-cable encoders as feedback. Thanks to the helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash. Highlights Robust axial gearbox in a compact design Shaft dimensions in line with market standard and standardized flanges Ensure top performance in even the tightest of spaces Motor with high overload capacity and large angular accelerations Adjusted for a combination with servo inverter
