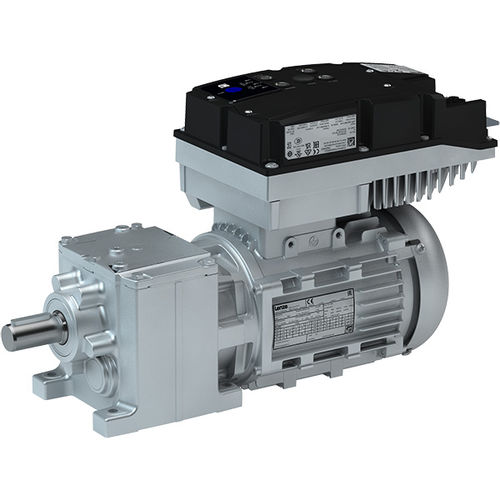

Three-phase gear-motor g500-H + m500 + i550 motechelicalcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Type
- helical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Performance
- low-backlash
- Other characteristics
- compact, IE3, IP55, with integrated frequency inverters
- Gear ratio
Max.: 2,950 unit
Min.: 0 unit
- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
The robust and universally applicable helical geared motors are an axial drive unit and can be controlled continuously with the integrated frequency inverter. They comply with efficiency class IE3.
Thanks to the helical gearbox, they have high permissible radial forces, finely graduated gear ratios and low torsional backlash.
- Shaft dimensions in line with market standard and standardized flanges
- Speed control via the integrated frequency inverter enables universal use
