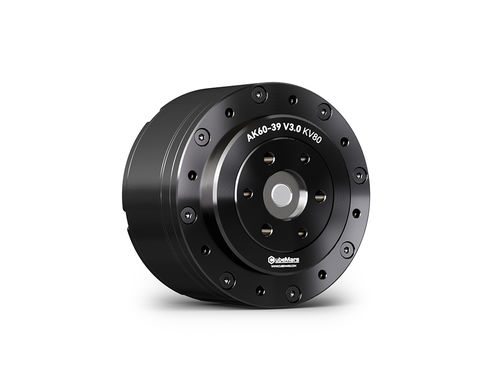

DC gear-motor AK60-39 V3.0 KV80three-phaseBLDCplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, three-phase, BLDC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 100 W...500 W
- Voltage
- 48 V
- Torque
- 20 - 50 Nm
- Mounting
- flange-mounted
- Performance
- low-noise level, high-efficiency, high-power, high-performance, precision, high load capacity
- Product applications
- for automation, industrial, optical, laser, for medical equipment, for industrial applications, for AGV, for lifting applications, for robots, with encoder, for robotics, for the chemical industry, for lawn-mowers, for pharmaceutical applications
- Certifications
- CE
- Other characteristics
- compact, custom-made, with encoder, with integrated controller
- Gear ratio
36 unit
- Operating temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)- Rotational speed
70 rpm
(439.823 rad.min-1)
Description
• Innovative dual-encoder design simplifies structure and improves installation efficiency
• Supports both servo and MIT modes
• One-click parameter identification
CubeMars AK60-39 Integrated Power Module: With a 39:1 planetary gearbox, it delivers 24 N·m rated and 72 N·m peak torque. The new dual-encoder design simplifies structure, improves installation efficiency, and ensures stable position detection with strong anti-interference. Absolute position is retained after power-off and instantly restored on power-up, removing the need for homing. The built-in driver supports both servo and motion control modes, enabling triple-loop control of position, speed, and acceleration. Adaptive PID requires no tuning, making it a ready-to-use solution for cobot joints, medical devices, and other precision applications.
