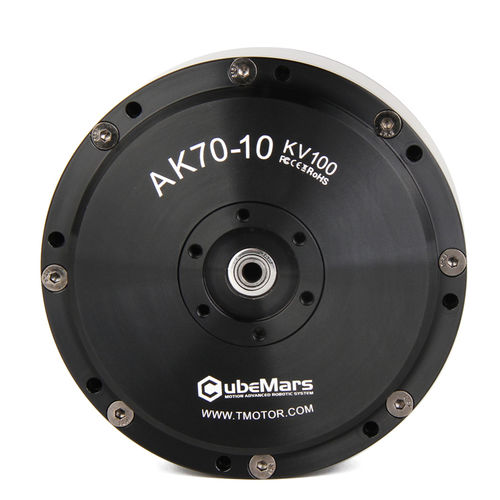

Robotic gear-motor AK70-10
DCthree-phasepermanent magnet

robotic gear-motor
robotic gear-motor
robotic gear-motor
robotic gear-motor
robotic gear-motor
robotic gear-motor
Add to favorites
Compare this product

Go to the CubeMars website for more information

Characteristics

Motor type
DC, three-phase, permanent magnet, brushless, servomotor
Type
planetary, worm, cylindrical, magnetic
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
100 W...500 W, 10 W...50 W, 50 W...100 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 10 V
Torque
1 - 5 Nm, 5 - 10 Nm, 20 - 50 Nm, 10 - 20 Nm, 50 - 100 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 100 - 200 Nm
Performance
high-efficiency, high-torque, high-power, high-performance
Product applications
for automobiles, industrial, for automation, for industrial applications, for vehicles, for packaging, for medical equipment, electronic equipment, for robots, for the packaging industry, cleaning machine, with encoder, rotor, for robotics
Other characteristics
low-noise, modular, with integrated controller, with encoder
Gear ratio

10 unit

Description

AK70-10 $498.90 Available points：0 Points ▏ Points reward：498 Points Promotion Every $200, $20 off • High Torque Module • Highly Integrated • Applied to Exoskeleton, Quadruped Robotic Dog • UART CAN Interface Specifications-AK70-10 Weight(g) : 521 Voltage(V) : 24/48 Rated Torque(Nm) : 8.3 Peak Torque(Nm) : 24.8 Max Speed@Rated Torque(rpm) : 200/400 (Output) Rated Current(A) : 8.8 Peak Current(A) : 26.1 Kt(Nm/A) : 0.095 Kv(RPM/V) : 100 Ke(V/rpm) : 0.01 Km(Nm/Vw) : 0.19 Number of Pôle-Pair : 21 Résistance Phase to Phase(mQ) : 272±5% Inductance Phase to Phase(uH) : 113±10% OD(mm) :
