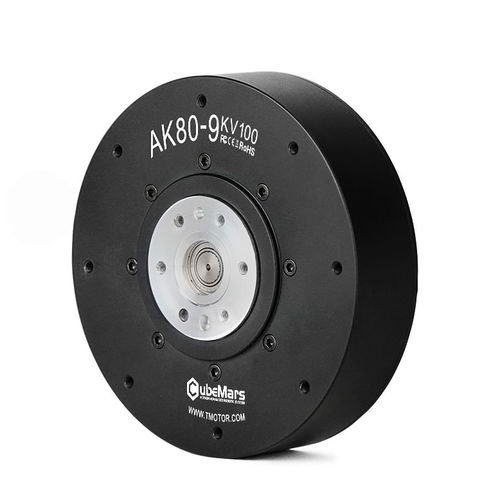

Robotic gear-motor AK80-9direct currentpermanent magnetBLDC
Add to favorites
Compare this product
Characteristics
- Motor type
- direct current, permanent magnet, BLDC
- Type
- planetary, worm, cylindrical, magnetic
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W, 50 W...100 W, 0 W...10 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 10 kW...20 kW, 20 kW...50 kW, 50 kW...100 kW
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 50 - 100 Nm, 100 - 200 Nm
- Performance
- low-noise, high-torque, high-power, high-performance
- Product applications
- for the packaging industry, industrial, for medical equipment, for automation, for industrial applications, for actuators, for robots, for vehicles, with encoder, for hygienic applications, for packaging, for robotics, cleaning machine, for pharmaceutical applications
- Certifications
- CE
- Other characteristics
- with encoder, with integrated controller
- Gear ratio
9 unit
Description
• 48V Robotic Dynamic-KV100
• Large Torque
• Highly Integrated
• Applied to Exoskeleton, Quadruped Robotic Dog
• UART CAN Interface
The AK80-9 actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque.Utilizing a portable drive solution, the AK80-9 Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to reach the target efficiently.CubeMars offers highly customizable motor modules.
AK80-9 Actuator Specifications:
- Operating Voltage: 48V
- Rated Torque: 9Nm
- Rated Speed: 390rpm
