OmniLOG® 90200
700MHz-2,5GHz
The OmniLOG® 90200 Antenna is specially developed for a quasi isotropic (radial isotropic) measurement in the GSM (GSM900, GSM1800, GSM1900), UMTS and 2,4GHz WLAN frequency ranges.
The OmniLOG antenna offers the possibility for a direct, radial measurement of field strength without the need to move the antenna to the source. This offers the possibility to get a direct field strength reading without any hassle.
It´s extremely small size allows measurements without attracting attention or even for covert measurements. Every OmniLOG Antenna offers a high-grade SMA connector.
- Highly isotropic from 700MHz to 2,5GHz
- Optimal for usage with spectrum analyzer for radial isotropic measurements
- 90° knuckle base with SMA connector
- Small weight and very small dimensions
- 10 years warranty
|
|
|
|
|
|
HUBER+SUHNER designs and manufactures an extensive product portfolio of directional and omni directional antennas for various wireless applications for the communication, transportation and industrial markets. The HUBER SUHNER product portfolio includes Antennas for
- Indoor DAS
- WiFi coverage for office, industrial and warehouse
- RFID portal and forklift antennas
- WiMAX base station, backhaul and subscriber CPE equipment
- Vehicle-mounted exterior and interior antennas for public transportation.
The know-how and many years of design experience gained by HUBER SUHNER antenna engineers allow us to provide the optimum solution for your specific requirements. Besides a wide standard product portfolio, we offer customized solutions to your need. We frequently include an antenna solution inside a customer defined (Industrial Design) housing. Thanks to these skills in wireless communication, it goes without saying that we offer all customers essential support in project co-ordination and after-sales support.
|
|

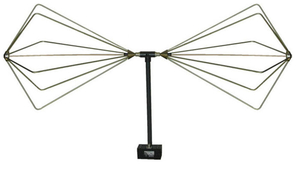

The practical biconical antennas of the BicoLOG® Antenna-Series are the perfect tool for performing economic and still highly accurate measurements in the lower frequency range up to 20MHz.
These radial-isotropic-antenna are already delivered with typical, extensive calibration data in order to facilitate calibration for various measurement systems. The BicoLOG 20100 and BicoLOG 20300 antenna is accompanied with a calibration sheet and thus offers maximum measurement precision right from the beginning! The high-quality measurement-antennas of the BicoLOG® series are very light-weight and as such perfectly suited for mobile application, as well as usage in the laboratory. Every BicoLOG-Antenna has a high-grade N connector and as such can be connected to nearly all measuring equipment. Devices, like Spectrum Analyzer, with SMA connector can be used with our optional, top-quality adapter.
|
|
The LogPer-Antenna of the HyperLOG® series 3000 are based on an ultra-thin, GOLD COATED high tech TEFLON substrate. Based on this innovative construction, the frequency range could yet again be vastly extended compared to the 4000 antenna-series. The lower frequency range now reaches down to 380MHz, thus covering, for example, the important TETRA band (380MHz and up). The extended upper frequency range up to 18GHz now also allow measurement of unusable signal sources like military radar, various satellite services, and more. Combined with a spectrum analyzer, an incredible EMC measurement system for mobile or laboratory use is formed, at an affordable price. As an option, the antenna-calibration-data can even be stored on a special IC on the antenna and be queried with our spectrum-analyser-series at any later time. What more can you ask ?
Shipped including EMC-Antenna, typical CALIBRATION DATA, detachable pistol grip and aluminum case.
|
|
|
|
|
|
Precompliance test antenna series HyperLOG® 60xxx span 680MHz to 18GHz
The LogPer-antennas of the HyperLOG® 6000 series are based on an ultra-thin, GOLD-COATED high tech TEFLON base. Based on this high quality technology, the antenna-frequency-range could again be vastly extended . Now the maximum bandwidth available reaches from 680MHz up to as far as 18GHz. Its small physical antenna-size and low weight make this antenna predestined for mobile use. The 18GHz frequency range now also allows the detection of unusable signal sources like military radar, various satellite services, very high frequency bugs, etc.
Shipped including antenna, typical CALIBRATION DATA, detachable handle, tripod, and aluminum case.
- Optimal for usage with spectrum analysers for EMC measurement
- Top-quality high-tech TEFLON antenna support
- Excellent forward/backward ratio
- Freely alignable polarisation
- Excellent symmetry of radiation patterns
- Integrated 1/4" tripod socket
- Suitable for mobile use
- Made in Germany
- 10 years warranty
|
|
Double Ridge Guide Horn Antennas
Broadband antennas, compared to half wave dipoles, reduce test time because the technician did not have to stop the test to adjust the dipole antenna for each frequency. Most compliance standards now require the use of such antennas. The latest version of Mil-Std 461E states the used of broadband double ridge guide horn antenna as the antenna of choice for frequencies above 200 MHz.
A.H. Systems Double Ridge Guide Horns are broadband antennas that offer excellent performance over the frequency range of 170 MHz to 40 GHz. These Horn antennas are an excellent choice for both radiated immunity and emissions testing. Here are several double ridge guide horn antennas ideal for most compliance standards and/or general field measurements.
|
|
|
|
|
|
By giving you the option to design and build custom application-specific antennas, Spectrum Advanced Specialty Products goes one step farther in helping you find the ideal antenna to ensure wireless reception of your system. Vertical integration allows for a wider range of materials in the manufacturing process, which deliver prototypes and production volumes in shorter lead times. Our antenna specialists use sophisticated simulation software and in-house testing to optimize your antenna, resulting in a high performance antenna built just for you.
In addition to our custom antenna solutions, we offer a complete line of patch antennas. When dealing with critical patch antenna issues such as board layout, ground plane size, mounting methods and port measurement, Spectrum’s engineering team is ready to help identify the best antenna choice for maximum efficiency. We look at everything from polarization to frequency tolerance to determine the ideal patch for your design. And our flexible manufacturing and testing processes allow us to easily accommodate the required adjustments to supply an optimized antenna.
• Variety of antenna types, including: Aperture, Slots, Loops/Magnetic Dipole, Planar, Helical, Beam Forming-static, Custom Networks and Switched Arrays
• Available in partial assembly to complete “Plug-n-Play” assemblies
• RoHS compatible parts available
• Low VSWR
• Frequency ranges within -300MHz to 6GHz
|
|
A.H. Systems offers 9 models of portable antenna kits. Each kit provides all the reliable antennas, current probes and accessories needed to satisfy a wide array of customer requirements. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head and a tripod carrying case accompany each antenna kit. see our website at www.AHSystems.com
|
|
|
|
|
|
Pasternack introduces it's new series of LMR (Land Mobile Radio) Antennas for Mobile Applications to fill filling a wide range of antenna requirements in wireless, telecommunication and radio applications. All products conform to the Telecommunication Industry Association (TIA) standards for terrestrial land mobile radio antenna manufacturers (TIA-804-A ./ TIA-804-B).
Pasternack's series of LMR Antennas are broad-based, wideband antenna solutions that operate over a wide range of frequencies. These products are designed for maximum durability under severe operating conditions. A wide range of styles allows users to select the right package and tuned frequency operation to satisfy virtually any LMR application. Operating frequencies range from 40~1990MHz and offer 150~200 Watts of power.
All products are in full production and stocked at the factory to support same-day shipment. Pricing is as low as $8.76 for 100 pieces of a Field Tunable Mobile Antenna rated for 118~940MHZ and 150W operation. Use Pasternack's on-line selection guide for complete specifications at www.pasternack.com. For additional support, contact Pasternack by phone at (866) 727-8376 or by email at sales@pasternack.com
|
|
In a HF product, the antenna plays an essential role: it's the most important link of the chain.
A quarter wave antenna, without its ground plan, will behave practically as a wire, but when its ground plan is sufficient, its efficiency will be maximal.
The antenna must be placed always in high position and clear from all metallic obstacles.
The antenna cable is another important element not to be neglected. Depending on the type of cable used, the loss in dB will be more or less high.
We bring you our advises for all your needs in wireless transmission and radio systems, with our product range for a variety of applications. We can also design radio systems according to your specifications.
|
|
For many years most standards called for the use of a half-wave dipole antenna set for frequencies above 80 MHz. However, to reduce test time, broadband antennas such as the biconical antenna and log periodic antennas began to be accepted. Broadband antennas, compared to half wave dipoles, reduce test time because the technician did not have to stop the test to adjust the dipole antenna for each frequency. A.H. Systems' 5 models of Biconical Antennas operate efficiently over the frequency range of 20 MHz to 330 MHz. Suitable for FCC, MIL-STD, VDE, TEMPEST, and immunity testing, each Biconical antenna will provide reliable, repeatable measurements. see our website for more details. www.AHSystems.com
|
|
|
We have a full Tuned Dipole Set, in a transit case, as well as a double Tuned Dipole Set, also in a transit storage case. Each contains baluns one through four. Each balun can be purchased separately, simply call or vist our website for more information on individual baluns.www.AHSystems.com
|
|
The miniature broadband active dipole receiving antenna CTS011 is a convenient alternative to a log-periodic antenna. It eliminates spatial errors introduced by large antenna and simplifies dealing with reflections and site attenuation.
CTS011 has a built-in equalizing pre-amplifier that makes its sensitivity at lower frequency ranges superior to larger passive antennas. Thanks to a built-in equalizing pre-amplifier the CTS011 has sensitivity comparable to a conventional log-periodic antenna. The interface module included with the antenna has a dedicated channel with over 20dB gain. This provides excellent sensitivity in a miniature size.
|
|
World smallest ceramic GPS chip antenna
11mm x 1,6mm x 1,6mm
also available for Bluetooth and W-Lan applications
|
|
|
The A.H. Systems' set of H-Field Rods provide an accurate standard for magnetic field testing. The rods are available individually or in a set of four to cover the frequency range of 100 Hz to 30 MHz. For those situations when improved sensitivity is desired in magnetic field testing, the H-Field Rod is an effective alternative to traditional loop antennas. One amplifier pre-assembled to a metallic ground plane covers the entire frequency range and can be used with any or all of the H-Field Rod elements. Visist our website for more information. www. AHSystems.com
|
|
|
|
|
|
Key Cylinder Antenna
Features:
The Keylock Cylinder Antenna is designed to emit a RF signal and identify the customer's key in the ignition system. This antenna is to be placed in the Ignition Switch Lock Cylinder, inside the vehicle. Since it can be exposed to the final customer, the antenna finishing fulfils the highest quality requirements.
Overmoulded with PA66 (ABS optional) assuring the IP67 classification.
Output wires can be customized to customer's design. Inside the overmoulding, the inductance, resistance and quality factor can be customized to required values.
Characteristics:
* High stability in temperature (-40ºC up to +85ºC).
* LF transponder Emitter/Transmitter antenna.
* Ideally used in the Ignition Switch Key Cylinder.
* Free wire or special connectors can be provided.
* The enclosure will provide mounting features into the vehicle
and will ensure the mechanical robustness.
* Low tolerances in the resonance frequency LC.
* Anchor points for easy assembly can be provided.
* Custom L and R value under demand.
|
|
|
A.H. Systems' offers 13 Log Periodic Antennas. Each antenna is lightweight, compact, rugged and has been manufactured to ensure maximum gain, low VSWR and high power handling capabilities. Whether testing inside a shielded enclosure or outdoors, the antennas will display efficient performance characteristics through the broad frequency range of 80 MHz to 7GHz. Visit our website for more information. www.AHSystems.com
|
|
Our Log Periodic Antenna series are calibrated broadband antennae enabling the direct measurement of field strength over the full radiated emissions spectrum up to 3GHz.
The BTA-series of antennae are used for radiated emission and immunity testing. They come fully calibrated and capable or handling up to 1kW of power.
These antennae are used for emission testing for CE, FCC, Automotive standards, and Military standards.
|
|
A.H. Systems' designs, manufactures and delivers high performance Loop Antennas for a wide range of magnetic field testing. Whether used in a set to measure shielding effectiveness per MIL-STD 285 and NSA 65-6 or individually to satisfy specific requirements, the Loop Antenna is an efficient, low cost solution. www.AHSystems.com
|
|
The RF300 is a fully compliant, calibrated 2 meter loop antenna manufactured to comply with European product specific standard EN55015 section 7.2 and annex B (EN55015 is specific to luminaires).
The calibrated frequency range of the RF300 is 9 KHz to 30 MHz and each antenna is supplied with antenna factor data so that it can be used with any EMC receiver or spectrum analyser capable of antenna factor compensation.
|
|
Broadband antennas, compared to half wave dipoles, reduce test time because the technician did not have to stop the test to adjust the dipole antenna for each frequency. Most compliance standards now require the use of such antennas. The latest version of Mil-Std 461E states the used of broadband double ridge guide horn antenna as the antenna of choice for frequencies above 200 MHz.
A.H. Systems Double Ridge Guide Horns are broadband antennas that offer excellent performance over the frequency range of 170 MHz to 40 GHz. These Horn antennas are an excellent choice for both radiated immunity and emissions testing. Here are several double ridge guide horn antennas ideal for most compliance standards and/or general field measurements. Visit our website for more information. www.AHSystems.com
|
|
|
Pasternack's Standard Gain Horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications. The waveguide bands start at 1.70 GHz and operate to 40 GHz.
|
|
|
Our Monopole Antennas provide superior performance in electric field measurements. The Active Monopole Antenna can drive any receiver with 50W input impedance and will perform FCC, MIL-STD and TEMPEST tests. The passive rod is used for transmitting, to perform shielding effectiveness and immunity testing. PLease visit our website for more details. www.AHSystems.com
|
|
|
|
|
|
868-870MHz helical right angle 50 ohm antenna with Reverse Polarity (no pin) SMA connector designed for our family of Wi.232XXX European radio modules. These antennas are designed to ETSI/CE certification approval for all our 868MHz European modular products. These antennas were certified with our FCC modular approved radios. This antenna supports the European family of Radiotronix Wi.232XXX embedded modules operating in 868-870MHz frequencies.
868-870 MHz FCC certified LONG RANGE ½ wave Dipole 50 ohm antenna with Reverse Polarity (no pin) SMA connector designed for our family of Wi.232XXX radio modules. These antennas are designed to meet FCC certification approval for all our modular products. This 2dBi high gain antenna is designed for longer range modules.
902-928MHz helical straight 50 ohm antenna with standard polarity (pinned) SMA connector designed for our family of Wi.232XXX radio modules. These antennas work with our standard polarity evaluations modules, Wi.XXXX-EVMs, that are supplied in our development kits and also sold separately.
902-928MHz ¼ wave whip 50 ohm antenna with standard polarity (pinned) SMA connector designed for our family of Wi.232XXX radio modules. These antennas work with our standard polarity evaluations modules,Wi.XXXX-EVMs, that are supplied in our development kits and also sold separately. This is the standard antenna shipped with all our development kits in the 900MHz frequency. This antenna supports 902-928 MHz frequencies and all Radiotronix Wi. Family of embedded modules.
902-928MHz 1/2 wave LONG RANGE Dipole 50 ohm antenna with standard polarity (pinned) SMA connector designed for our family of Wi.232-XXX-EVM-R radio modules. These antennas work with our standard polarity evaluation modules that are supplied in our development kits and also sold separately. This 2dBi high gain antenna is especially recommended for our long range module, Wi.232FHSS-250-R. This antenna supports 902-928MHz frequencies.
|
|
|
|
|
|
JB Series 30 MHz - 6 GHz:
JB Series antennas are compact, high-performance instruments designed for EMC emissions and immunity testing. The broadband characteristics of these antennas enable them to operate over a wide frequency range - a must for automated test environments. Innovative design and manufacturing techniques result in long-lasting strength and mechanical integrity. The result is an electrically stable measuring instrument that maintains calibration over extended use.
The antenna boom is made from a custom aluminum extrusion that reduces the number of parts at the nose. The result is a stronger, more stable feedpoint and excellent cross-polarization properties. The unique shape allows for a larger feed cable to be used, which significantly increases the maximum power rating. Dipole elements are permanently attached to the boom by an assembly technique that maintains excellent electrical characteristics for the life of the antenna.
The low-frequency wings are swept forward and turned in at the ends to reduce ground plane coupling while maintaining performance. Each wing is attached with dual compression fittings for true alignment. A tough powdercoat finish with UV inhibitors seals the aluminum structure and protects it from sunlight and moisture.
|
|
Product Highlights:
Antenna Style = Embedded Antenna
Voice Application
Antenna Type = 800 MHz Cellular
824 - 894 MHz Operating Frequency
Mount = Tab
|
|
Portable radio antennas are used for wireless two-way communication with civil service, military, and construction organizations; with many custom applications.
Established in-market presence and innovative molding techniques, with verified platforms and a variety of connection options adds to the reputation for rugged reliability in hazardous situation and harsh environments for these antennas.
Laird Technologies' portable radio antennas are the world standard for reliable flexible ("Rubber Duck") antennas. These antennas are used with all popular portable radios in use by police, fire, militray and private users; and provide excellent communication in any location, environment, or condition. Tuf-Duck® and patented Sable antennas are included in this product line. Each antenna can be individually tuned to frequency to ensure optimum performance.
|
|
THE LÜNEBERG ANTENNA
Luneberg lenses are used in microwave communication.
Luneberg lenses can be excited by one or several feeds, providing multi-feed antennae with extremely high directivity and high theoretical gain G, equivalent to the gain of a parabolic antenna of similar diameter.
APPLICATIONS
- On-board antenna: plane, train, boat, car, ...
- Microwave communication, high outflow Internet.
- Communication toward several fixed or mobile antennae (satellites...)
- Land communication relay station.
|
|
Antennas for SATELLINE Radio Modems
We can offer following antenna types for your solutions:
* Half Wave Antennas for frequencies 400 ... 470 MHz and for 869 MHz (for SATELLINE-1870 modems) for short distances
* Quarter Wave Antennas for frequencies 400 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for short distances
* Helix Antennas for frequencies 400 ... 470 MHz and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for short distances
* Directional Antennas for frequencies 370 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for long distances
* Omnidirectional Antennas for frequencies 370 ... 470 MHz, for 869 MHz (for SATELLINE-3AS 869 modems) and for 140 ... 174 MHz (for SATELLINE-3AS VHF modems) for long distances.
|
|
|
Cushcraft's integrated diversity antenna designs feature two separate 2 dBi omnidirectional radiating elements sharing a common backplane and enclosure. The radiating elements are terminated with coaxial pigtails and MMCX connectors that exit the backplane of the antenna. Hence, they can interface with an access point that has been mounted in the plenum above the ceiling if so desired. The complete package dimensions are 5.25" x 2.75" x .75". Both coax length, connector type and package aesthetics can be modified to meet customer requirements. Offices, HealthCare facilities, educational or industrial campuses and shopping malls are just a few of the more common applications for these antenna designs.
|
|
|
|
