HUBER+SUHNER offers some standard cable systems which can be specifically modified for industry and installation applications. But mostly, systems are designed and produced according to the customer's specifications.
We offer:
- lighting systems for tunnels
- airfield lighting
- customer specific cable systems for machine building, apparatus engineering, sensor wiring, measurement devices, door systems, robotics, air conditioning
- other special applications |
|
Characteristics: Flexible ropes designed for immersion or submersion in all types of liquids.
Applications: Electrical power supply units for immersed pumps (soft water, wastewater, raw sewage, saltwater, chlorinated water, liquids and foodstuffs).
Brands: PROFIPLAST |
|
- Safe choice of industrial cables -
understanding the needs of our customers´ applications, we offer the safety of the right cable matched to specific requirements.
- System compatibility -
the cable design can significantly influence the performance of the energy
and/or data supply system - we ensure the proper alignment of the cable to the system for optimum energy and data transfer.
- Producer independence -
only the performance of the cable is important to us, not its origin - we neutrally choose only the best cables available on the market.
- System guarantee -
each complete Conductix-Wampfler System is provided with a comprehensive guarantee - needless to say, including the cable.
- Conductix-Wampfler cable service -
the graded Conductix-Wampfler Services ensure the reliability of our systems and the availability of our customers’ equipment. |
|
BASIC PROPERTIES
1. No flame propagation:
Does not take part in flame propagation. Self extinguishes.
Standards: EN 50265 / IEC 60332-1.
2. No fire propagation:
Subjected to simulated fire conditions, does not generate new secondary fire sources.
Standards: EN 50266 / IEC 60332-3.
3. Halogen-free:
Degree of acidity and conductivity of gases released during combustion. Standards: EN 50267 / IEC 60754.
4. Zero opaque smoke emission:
Measurement of light transmittance by smoke emitted during combustion. Standards: EN 50268 / IEC 61034.
5. Low toxic smoke emission:
Permissible toxicity index for gases of combustion not to be exceeded. Standards: RATP K-20.
EXAMPLES:
ES 05Z1-K
ES 07Z1-K
ES 07Z1-R
H07Z-K (AS)
H07Z-R (AS)
RZ1-K (AS)
SZ1-K (AS+)
|
|
Characteristics: insulated cables in silicon, Teflon, FEP, MFA, PFA, PTFE, Tefzel, ETFE, XLPE, XLPO, glass fibre, mineral fibre, Kapton.
Applications : Electromechanical construction (cables and braided sleevings – classes B, F and H), wind power (Profilwind range), electrotechnical applications (zero-halogen cables), rail construction (Y 3000 S, Z 3000 SS, NY 500 SO), heavy industry, lighting. Reference standards: IEC 60332-1, IEC 60332-2, IEC 60332-3, IEC 60331, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, EN 50200, EN 50264, EN 50265, EN 50266, EN 50267, EN 50268, EN 50382, NFF 63827, NFC 32070
Brands: SILICABLE, SILIFLON, SILICOUL, SILIFLAM, PYRISOL, COUPLIX, SILIGAINE, SILITUBE, VARPREN, SILISOL, VEROX |
|
HV PROFESSIONAL CABLES
(from 26/45 KV to 127/220 KV)
• Conductor: stranded annealed (class 2).
• Triple extrusion: Extruded semiconductor/EPR or
XLPE insulation/extruded semiconductor.
• Metal screen: CWS (Copper Wire Screen).
• Outer sheath: PVC, PE, Thermoplastic polyolefin LSF.
• Testing standard: IEC60840.
|
|
1. BUILDING WIRE
Harmonized professional cables:
• H05V-K, H07V-K, H05V-U, H07V-U, H07V-R.
• H05VV-F, H05VVH2-F.
Zero Halogens harmonized cables:
• H07Z-R, H07Z-K.
2. LV CABLES (0.6/1 KV)
• Conductor: Solid (class 1) / stranded annealed
(class 2) / flexible (class 5).
• Insulation: XLPE, EPR or PVC.
• Outer sheath: PVC, PE or Thermoplastic polyolefin LSF.
Standards of manufacture: IEC 60502/1, EATS.09.6, BS5467,
BS6724, NFC 33-221, NFC 33-322, NFC 33-209.
Standard constructions:
- ABC ( Arial Bundle Cable).
- RV (XLPE/ PVC).
- RZ1 (XLPE/ Thermoplastic polyolefin LSF).
- Concentric cables.
3. SPECIAL CABLES
(in compliance with project specifications)
a) Type of cables
• Instrumentation cables.
Standard of manufacture: BS5308 (part 1 and part 2).
• Signal and Control cables.
• Rubber insulated cables.
- Harmonized types: H05RR-F, H07RN-F, H01N2- D
- LV cables (0.6/1 KV): DN-K (EPR/PCP).
• High security cables.
Performance standard: IEC 60331.
b) Sectors
• Mining Cables.
• Railway Cables.
• Shipwiring cables.
- Power MV and LV, control and instrumentation
cables.
• OGP (Oil Gas and Petrochemicals).
- Onshore.
- Offshore.
|
|
Characteristics: Instrumentation and power cables, standard or fire-resistant, that meet the demands of international marine standards.
Applications: Shipbuilding
Brands: VARPREN, MULTIMAX |
|
MV CABLES
(from 3.6/6 KV to 18/30 KV)
• Conductor: Stranded annealed (class 2).
• Triple extrusion: Extruded semiconductor/EPR or
XLPE insulation/extruded semiconductor.
• Metal screen: CWS (Copper Wire Screen) or CTS
(Copper Tape Screen).
• Outer sheath: PVC, PE or Thermoplastic polyolefin LSF.
• Standards of manufacture: IEC 60502/2, BS 7870,
BS6622, HTAC 33-226.
|
|
| Wire+Cable for the railway industry |
|
For many years, leading manufacturers of medical equipment have relied on LEONI’s high-quality products and services. Among LEONI’s developments for SIEMENS in 2004 were ready-to-plug supplier of cable assemblies for the new Avanto MRI professional scanner, which makes single-session whole-body imaging with excellent image quality a reality.
Quality that pays:
For best achievement in quality, quality assurance, delivery and affordability, LEONI Special Cables was named ‘Best External Supplier of 2004’.
|
|
Composite cables
Axon' design and manufacture composite cables specially designed to meet customer requirements irrespective of the application.
They are able to resist the most demanding electrical, mechanical and environmental requirements.
Advantages
Dependent on the application
- Flexibility
- Flexlife, resistance to torsion
- Resistance to fuel, heat and solvents
- EMI protection
Resistance to sterilisation (medical application)
Construction
- Flat or round construction integrating flat or round wires, coaxial cables, tubes, shielded cables, ...
- Hybrid electrical, electro-optical cables
Composite cables insulated with fluorinated materials, heavy metal free materials, halogen free materials, PTFE, celloflon®, vitax™, PEEK, silicone and other materials suited for your applications
Applications
- Electromechanics
- Engines
- Machines
- Industrial robots
- Medical imaging
- Endoscopy
- Radars
- Missiles
- Electronic systems
- Satellite cabling
- Research, ...
|
|
| Combined energy and control professional cables for the machinery and construction industries as well as high-quality polyurethane cables for mining and tunneling applications - these are the key features in the range of products from our Industry division. The range also includes cables for salmon farms. |
|
Application
Connecting line for measurement and data equipment.
As a result of using SR-PVC cables are perfectly suitable
for Termi-Point-connection. SR-PVC = Semi-Rigid PVC
Especially semi-tough PVC to support the Termi-Point
connection-technology. The interconnected technology
without soldering assured:
- high contact confidence
- minimum contact resistance
- long durability
- service-affibility |
|

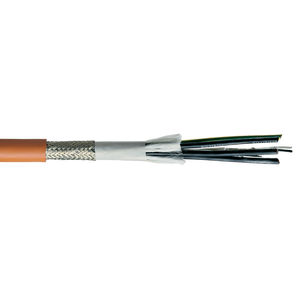

BETAflam® 70 C-flex R have an EMC-optimized industrial shielding of braided tinned copper. These screens are very effective in electric fields and magnetic fields of medium to high frequency.
BETAflam® 70 C-flex R control cables are used when physical separation of the high voltage and signal cables is insufficient to avoid disturbance or signal coupling. |
|
Vibraflame® is a range of cables designed to resist extreme temperatures ranging from -196°C to +1565°C.
Axon’ also offer extension and compensating cables for supplier of thermocouples able to resist temperatures of up to 1050°C.
Characteristics
- No asbestos
- Fire resistant
- No propagation of flame at any temperature
- Excellent heat and humidity resistance
- Construction
- Conductor :
- Nickel plated copper
- Nickel alloy, nickel chrome, iron, constantan,
copper alloy, cupronickel for extension and compensating cable
- Special insulation : a combination of mica, organic polymers and fibre glass
|
|
Applications
The application for this single core is ideal if the environmental temperature exceeds 55°C. For inside wiring of switch boards and distributors as well as operating parts for the connection of electric heaters. These cables are also suitable for laying in tubes, on and
beneath plaster. |
|

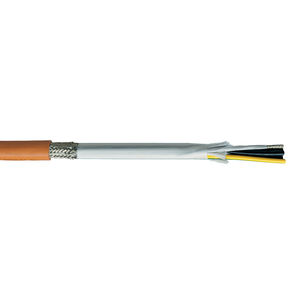

BETAflam® 70 flex are halogen free control and supply cables for medium mechanical stress. Suitable for fixed and flexible laying without strain or forced guidance. Use in dry, moist or wet rooms.
Typical areas of application are conveyor manufacturer and assembly belts, conveyor systems, production equipment, power stations, switching systems, where the flexibility facilitates installation. |
|
We offer you an extensive range of flexible power transmission components. Our diverse manufacturing processes facilitate the production of highly flexible braided cables matched to suit your specific application, ready-assembled connecting components or welded high-current manufacturers of connectors. From the smallest ground or earthing tapes up to high-current cables with 6000 mm² conductor cross-section – almost all conceivable applications are covered. Whether in air-cooled or water-cooled designs, we can offer you the right components and solutions.
Please contact us directly for technical support.
|
|
Equipment wires and cables for high temperatures
Axon' offers an extended range of equipment wires and cables for any applications requiring resistance to high temperatures (-90°C to +260°C). Different types of constructions can be proposed and delivered ex stock.
Construction
- Conductors :single or multi-strands made with copper, copper alloy, tin, silver or nickel plated copper
- Braided shield : silver plated annealed copper or tin plated copper
- Insulation : PTFE, FEP, PFA, ETFE, polyimide, ... extruded or taped
|
|
Description
The SBS ( Stimulated Brillouin Scattering) Temperature Cable makes use of the inherent temperature sensitivity of the Fibre. One single fibre can replace thousands of point sensors thanks to the distributed sensing concept. This concept refers to the use of a single optical fibre as a linear uninterrupted sensor providing multiple sensing points distributed over the whole fibre length.
The fibre is inserted into a stainless steel capillary with a diameter of 3 mm . The capillary is filled with a special gel which keeps the fibre in a loose tube configuration. This loose tube configuration maintains the fibre stress free over the complete operating conditions.
Features
The SBS Temperature sensor suppliers can measure distributed temperatures with a resolution of 0.1 °C and an accuracy of 2°C . The maximum temperature range is 200°C .
Applications
Pipeline monitoring, process control, ... |
|

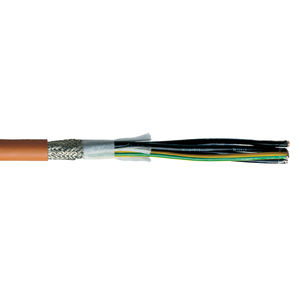

BETAflam® 145 flex cables are halogen free, electron-beam cross-linked temperature resistant cables for connecting lamps, heaters, electrical machines (Class B), switchgear and distributors in apparatus, machine and plant manufacture.
The electron-beam cross-linking prevents the insulation or sheath melting, even when they come into contact with hot soldering irons. The excellent temperature resistance up to 145°C continuous temperature guarantees a very long life at normal lower operating temperatures. Cables of the BETAflam® 145 flex series have good weather resistance as well as resistance to temperature, moisture, ozone and ultraviolet light. |
|

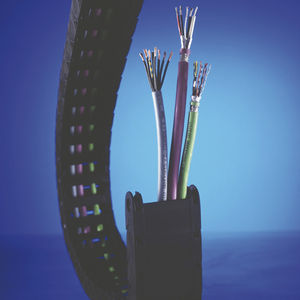

Chainflex® are the special cables for Energy Chain Systems® – tested, tested, tested and tested.
As a manufacturer of Energy Chains® and special Energy Chain® cables, igus® uses the possibility of testing many different types of chains and cables on a practice-oriented basis At the company-own technical training center in Cologne, numerous series of tests are carried out on a parallel basis under the most difficult conditions. At the present time, there are more than 35 test setups with their test results being summarized in databases. This extensive, current data pool provides precise, reliable information on the actual service life and is also the basis of new product developments at the company. The test data for Energy Chains® and cables, but also for ready-made systems, are, however, described in such detailed form that igus® confirms a functional guarantee for its Energy Chain Systems®. |
|
The progressive design of the TRI-DELTA® cable leads to a longer service life of this medium voltage cable.
With continuous further development from 1990, LEONI Studer AG has made the plastic insulated medium voltage cable more compact and lighter by replacing the steel reinforcement of the three-core cable with an extremely tough sheath. At the same time the copper wire shield was replaced by a hermetically sealed longitudinally and transversely water-proof tubular aluminum shield.
The name TRI-DELTA® comes from the triangular cross-section form of the three-wire cable. As a solution to the problem of “water trees” in polymer-insulated cables the TRI-DELTA® cable provides a «dry» medium voltage cable for the first time on the Swiss market.
TRI-DELTA® cables have the certificate «SEV Plus» for conformity and quality. They meet the special SEV quality requirements for plastic insulated medium voltage cables. |
|
| VFD is the acronym for Variable Frequency Drive, which has become a very popular method to adjust a motors speed. Frequency can be defined as an electrical term meaning power pulses of voltage and current. In the United States 60 Hertz, or 60-power pulse cycles per second, are conducted through most wires and cables throughout the country. As the power in the United States is alternating current (AC) each of these frequency cycles contain one positive and one negative power pulse of voltage and current. Increasing the number of power pulses per second will make the motor turn faster. Likewise, decreasing the number of power pulses per second will make the motor turn slower. Therefore by increasing and decreasing the frequency of the power pulses, the drive can adjust the speed of the motor. |
|
Applications:
Power and data transmission cables are used for outdoor and underground applications, in water and in concrete provided mechanical damage can be ruled out. These cables are installed for applications such as petrol stations and oil refineries where resistance to oils and fuels is
required. |
|
| The Power Professional cables division covers all commonly used low- and medium voltage cables and the relevant accessories for energy supply networks, up to and including easy-to-install, environment-friendly cabling for cutting systems. |
|
HANDLING
For applications with high mechanical constraints, LAPP MULLER offers a large range of cables with a very good resistance to elongation, breaking, climatic and chemical environment. Lapp Muller works for reelers and gantry professional crane manufacturers, for ports and airports.
- MULARFLEXÒ
Complete range of reeling cables (with optical fibers, bus conductors…) which can resist to very high mechanical constraints as traction, weight, compression
- 400 HZ CABLES
Multipurpose, very flexible cables, they’ve got a good resistance to abrasion, to weather conditions, to skydrol, to kerosene and to other products used on the airport traffic areas
- FLAT CABLES
Control and power cables for bridge cranes with special environment as for instance fleets of container
These companies trust us :
DELACHAUX, CAVOTECH, PORT AUTONOME DE MARSEILLE et DU HAVRE, SOLLAC DUNKERQUE, AEROPORT DE PARIS….
|
|
|
|
