Special power supply for drive electronics
PFC, high impulse load.
DIN rail mounting clip and heatsink option.
|
|
CSD Series Switching Power Supplies, in modular DIN case with Class 2 double isolation, 90…264Vac/100…350Vdc input.
Items with adjustable 5…15Vdc, adjustable 12…15Vdc, adjustable ±12…±15Vdc and 24Vdc output, 0.6A , 1A , 2.5A , 3A output currennt in 2 or 4 module-cases are available.
EMC compliant to Civil application standards; RoHS compliant; no grounding needed;
Short circuit, overload, over temperature, input / output overvoltage
protection. Designed for use with SELV and PELV circuitry.
|
|
Convel DIN rail mounting power supplies are designed for quick and trouble-free installation onto 35mm profile DIN rails.
With outputs ranging from 5V to 24V and maximum current capabilities of 100mA to 4A, these units are ideal for many instrumentation and sensor applications.
Every model in the range is provided with output current foldback limiting and is fully short-circuit protected.
Great attention has been taken to usability and safety.
Link selection allows the use of 115 or 230V supplies without derating.
|
|
|
MTM Power GmbH, the specialist of individual power supplies, offers power supplies for DIN rail mounting with 15 to 75 W. These primary switched modules have been designed as universal compact power supplies with wide input ranges for worldwide applications in switching cabinets and allow an efficient, cost-saving solution for different tasks. They are vacuum encapsulated which allows the use under critical environmental conditions. Further features are rugged design, SMD-technology, automatic 100 % final test and 100-%-burn-in-test. MTM Power DIN rail power supplies comply with the Low Voltage Directives as well as the up-to-date EN standards as regards CE conformity. All devices are short circuit protected, need no ground load and are available with various modification possibilities.
|
|
|
MTM Power GmbH, the specialist of individual power supplies, has designed a new generation of DIN rail power supplies, series HSA, for industrial application. As universal compact power supplies, they have an output power of 120 or 240 W. One of the major advantages is to increase to a maximum the readiness for operation of the system to be supplied even under difficult conditions. With dimensions of 50 x 130 x 130 mm (HSA120) and 80 x 130 x 130 mm (HSA240), they perfectly fit into cabinets only offering little space. The devices are available with output voltages of 12, 24, 36 and 48 VDC. They have a high efficiency of up to 89 %, are continuously short circuit protected and need no ground load. The output current is electronically limited in case of overload and the devices then change into constant current operation. Due to this characteristic curve and the reduction of the output voltage to 0 V at the same time, they are protected against short circuit damages and thus offer the possibility to supply loads with high inrush currents without switching-off or intermitting resp.
|
|
RPS-30: DIN rail power supply for automation systems, in plastic cover. They are designed for direct mounting on 35 mm DIN rail mount, EN 50022 (wires connection: input - 2 terminals, output - 4 terminals).
Features of RPS-30:
- universal AC or DC input (full range),
- protections: short circuit, overload, overvoltage,
- cooling by free air convection,
- LED indicator for power on,
- 100% full load burn-in test,
- fixed switching frequency at 100 kHz,
- high efficiency and low dissipation,
- low nois and interference,
- 3 years warranty.
RPS-120: DIN rail power supply for automation systems, in metal cover. They are designed for direct mounting on 35 mm DIN rail mount, EN 50022 (wires connection: input - 2 terminals, output - 4 terminals).
Features of RPS-120:
- AC input range selectable by switch,
- protections: short circuit, overload, overvoltage, overtemperature,
- cooling by free air convection,
- LED indicator for power on,
- 100% full load burn-in test,
- fixed switching frequency at 55 kHz,
- high efficiency and low dissipation,
- low nois and interference,
- 3 years warranty.
Compliance with EMC standards:
- EMI conduction & radiation: EN55011, EN55022 (CISPR22) Class B,
- harmonic current: EN61000-3-2,-3,
- EMS immunity: EN61000-4-2,3, 4,5,6,8,11, ENV50204, EN55024,
EN61000-6-2, EN61204-3 Heavy industry level, criteria A.
|
|
General Purpose 24 to 240W
The TCL series is a family of DIN-rail power supplies which come in ultra compact, light weight plastic housing. These products offer an economical solution for many applications in the industrial, office or residential environments. Easy snap-on mounting on DIN-rails or also wall mounting with an adaptor.
High Performance 70 to 600W
The TSP series represents a range of high performance DIN-rail power supplies with innovative and powerful features! Shock and vibration proof construction with a rugged metal case these products are designed to work reliable even under most difficult factory floor conditions. Excellent electrical specifications and high immunity against electrical disturbances makes the TSP series product the best choice to power sensitive loads in industrial process controls, machine tools or other demanding applications. A high power reserve guarantees a reliable start-up of loads with high inrush currents as i.e. motors. 14 standard models are available with tightly regulated, adjustable output voltages of 12, 24 and 48VDC and up to 25A. The power supplies are specified for industrial operating temperatures from -25°C to +70°C with convection cooling and provide also a thermal overload protection. All models feature as standard Remote ON/OFF and remote diagnostic via relay contacts or NPN output.The products come with an International safety approval package and are also certified to ATEX 94/9/EC
for hazardous locations (opt.)
|
|
DC – UPS Systems for Safety Relevant Installations
With their modular construction, the latest DC – UPS systems in the GTLB/GTPB series from Zentro Elektrik expand the existing comprehensive range of DC – UPS systems for supplying power to safety relevant installations.
The AC/DC systems in standby parallel mode are designed for outputs
from 250 Watt up to 600 Watt and fitted with batteries at the customer’s request. Additional DC/DC converters can be added to the system if more output voltages are required.
A battery control and monitoring module allows to control the charging current and temperature control of the charge closing voltage.
Over and above this, numerous monitoring and control signals are provided via relays, LED’s or potentiometers. A signal relay, for example,
if the charging voltage fails, to switch off the battery on it reaching the closing discharge voltage, to give advance warning of reaching closing discharge voltage with an additional adjustable threshold or individual limitation of the battery charging current to prolong battery life, and
many more. LED displays and adjustable potentiometers provide for comprehensive signalling and the ability to adjust the maximum charging voltage or the defined point of battery switch-off.
|
|
DIN rail power supplies with high performance and compact dimensions, in linear or switching technology. For instance, the 240W/24V/10A model come with PFC, 3-phase wide range input and are only 125 x 125 x 125mm.
- DC output: 12V or 24V fixed, 12...14V, 24...27V, 48...56V adjustable
- AC input: 230V or 90..264 (wide range)
- Powers from 6W to 960W
- Linear and switching mode types
- PFC
- 3-phase variants
- Remote sense
- Power fail output
|
|
- Unparalleled compact design, up to 55% less space required
- Unmatched efficiency of up to 95%
- MTBF > 600 000h, specified capacitor lifetime > 50 000h
- 80W to 480W output power
- 1-phase or 3-phase input
- Metal housing
- Quick-connect spring-clamp terminals
- Output voltages from 12V to 56V
- 150% peak load capability up to +60°C
- DC-OK relay contact
- Operation from -25°C to +60°C
- Active PFC, even for 3-phase input
- 85V to 264Vac wide-range input (single phase)
- DC input from 88V to 370Vdc (single phase)
- Extra low inrush current
- Ride through buffer units
- Decoupling modules
|
|
X-Series: Semi-regulated 3-Phase power supplies 960W
Power supplies in the DIMENSION X-Series include an innovative concept for genereating a DC-voltage from a three-phase input.
- Output voltage: 24V (units with output up to 72V available)
- Output current: 40A
- 25% BonusPower
- AC-input 400V-Unit: 3AC 400V
- Efficiency: 95.5%
- Operational temperature range: -25°C to +70°C
- Dimensions: 96x235x157mm
- Weight: 1.4kg
|
|

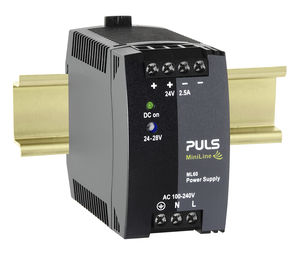

- 25W to 100W output
- 1-phase input
- Molded plastic housing
- Quick-connect spring-clamp terminals
- Output voltages from 5V to 56V
- Special measures for parallel operation
- Decoupling module for redundancy
|
|
* HiTech for most demanding industrial applications
* 12-56V, 2,5-30A
* Very high efficiency rates up to 93%
* Class B limits (emissions) for input and output
* Easy mounting and fusing
* Power Boost (up to 25% more capacity, no need for
overdimensioning)
* Ideal also for parallel operation
* World-wide approvals (UL, EN, CSA, CBScheme)
* Excellent cost-benefit ratio
|
|
|
MPD now offers a full range of standard DIN-Mount AC/DC power supplies. Ranging from 45W to 240W (upcoming releases will extend the line to 960W) these units offer high power density, universal AC inputs, full international approvals (including UL 508), and DIN Rail mounting capability. If your equipment requires a rugged, high performance industrial power supply and the convenience of DIN rail mounting; we have a low cost power supply to fit your needs.
|
|
RFS DIN Rail Temperature Controller
Smart PID tune
Universal input
Three outputs
Logic input
Soft start power limiter
Heater failure detection
EIA485 Modbus
PC Wizard configuration
Designed to offer outstanding control performance in a compact DIN rail package the RFS provides a comprehensive solution for a wide variety of applications: such as plastic manufacturing, packaging machinery and food processing applications requiring precise heat/cool control and process protection alarming.
Ideal as a slave PID loop to a programmable logic controller the RFS offers a cost effective alternative to performing loops in a PLC while at the same time improving loop performance. All inputs and outputs can be read directly over the Modbus communication interface by the supervisory host system. Additionally, the master can write to RFS outputs that are not assigned as alarm or status functions. This expands the available PLC and host supervisory system I/O, simplifies machine troubleshooting and provides the ability to perform remote diagnostics.
The RFS accepts one universal process input suitable for thermocouple, resistance thermometer or linear mV/mA and coupled with a responsive Smart PID self tuning algorithm it is equipped with special functions including soft start and non-linear cooling. Smart tuning automatically adjusts the PID sets according to the current process dynamics without the need to cycle the process and therefore has no detrimental effect on the current operating conditions.
|
|
|
The WSX43P is a DIN rail mounting power interface board which extends the versatility of the WSX43B Precipitation Detector by proving mains power interface, adjustable set-point temperature and higher power relay output.
|
|
|
The PVSE 400 is a economical three-phase switch power pack with highly precise output voltage for all requirements of the automatic control engineering. Concentrated on the nuclear tasks tension and of supply of electricity. Highest power reserves of up to 200% owing to power Boost. The Top Boost supplies in the event of an error up to 60 A over rated current, this makes possible a economical securing with automatic circuit breakers. Available as stabilized or semistabilisierte variant, with output rated voltage 10, 20 and 40 ampere, optionally also with DC OK signaling and active starting current delimitation.
|
|
Features:
- Standard/ DIN Rail Mounting Dual purpose
- Convection Cooled
- input/ output LED indicator
- 100% burn in test
- MOSFET designed
- 1 yar warranty
|
|
