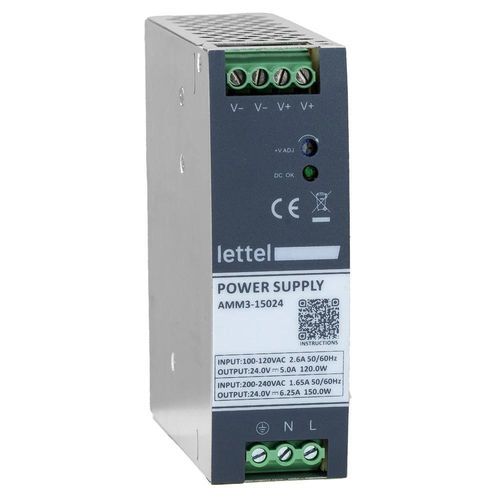

DIN rail power supply AMM3 series

AC/DCstabilizedswitching

The AMM3 AC/DC stabilized power supply converts alternating current to direct current with a maximum power of 120W. - **Electrical Features:** - Switching power supply for input voltage 85 to 264 VAC. - Efficiency from 87 to 89% depending on models. - Output voltages according to models: 12V, 24V, and 48V. - Output voltage is adjustable by +/- 5%. - Power of 120W. - **Protection:** - Integrated protection against overvoltage, overcurrent, and short circuits. - The secondary cuts off when the input signal goes out of the allowable range. - Automatic recovery of the secondary when the input signal returns to the allowable range (HICCUP recovery mode). - **Physical Characteristics:** - Metal housing clip-on DIN rail, width 3 modules. - Connection by screw terminals. - **Applications:** - Converts alternating current to direct current to power devices or circuits operating on direct current. - **Adjustable Voltage:** - The secondary voltage is adjustable by +/- 5% using a potentiometer located at the connection terminals. - **Indicator Light:** - A green LED indicates correct output operation. - **Compliance:** - CE, RoHs, Reach. - **Applicable Standards:** - EN55032, EN61000-3-2, EN61000-6-2, EN60124-3. - **Variants and Order Codes:** - Order Code: AMM3-120-12, Output Voltage: 12 VDC, Power: 120W, Product in stock - Order Code: AMM3-120-24, Output Voltage: 24 VDC, Power: 120W, Product in stock - Order Code: AMM3-120-48, Output Voltage: 48 VDC, Power: 120W, Product in stock - **Resources:** - Learn more about Lettel's AC/DC stabilized power supplies - **Related Products:** - Backup power modules to ensure continuous power supply in case of stabilized power supply failure.
