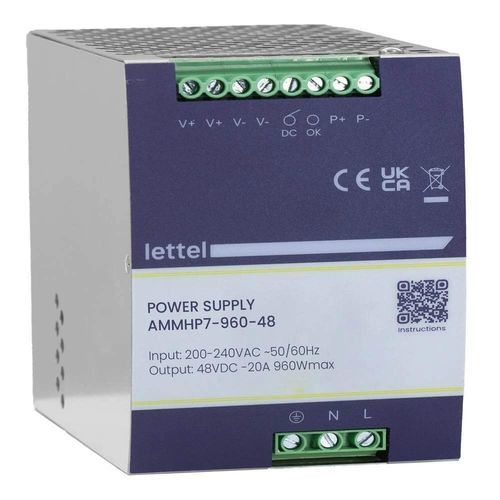

DIN rail power supply AMMHP7 series

AC/DCstabilizedswitching

The AMMHP7 stabilized AC/DC power supply converts alternating current into direct current with a maximum power of 480W: - Electrical: Switching power supply for input voltage 180 to 264 VAC. Efficiency 94%. Output voltages depending on models: 24V and 48V. The output voltage is adjustable by +/- 5%. Power: 480W. Integrated power factor correction. DC OK output contact. - Protection: The stabilized AC/DC power supplies have integrated protection against overvoltage, overcurrent, and short circuits. The secondary is cut off when the input signal goes out of the admissible range. - Physical: Metal housing, DIN rail mountable, width 7 modules. Connection by screw terminals. - Applications: Stabilized AC/DC power supplies convert alternating current into direct current to power devices or circuits that operate on DC. - DC OK output contact: The DC OK contact is closed when the power supply is active and opens in case of a secondary signal cut, thus allowing an alert in case of abnormal situation or device failure. - Adjustable voltage: The secondary voltage is adjustable +/- 5% using a potentiometer located on the front of the device. - Indicator light: A green LED indicates correct output operation. - Compliance: CE, RoHs, Reach. - Applicable standards: EN55032, EN61000-3-2, EN61000-6-2, EN61204-3. - Technical booklets: All about Lettel stabilized AC/DC power supplies - Associated products: Backup power supply modules: Additional modules to ensure the supply of direct current in case of failure of the stabilized power supply. - Variants and order codes: Order code: AMMHP5-480-24-1, Output voltage: 24 VDC, Power: 480W, Stocked product: In stock Order code: AMMHP5-480-48-1, Output voltage: 48 VDC, Power: 480W, Stocked product: In stock - Technical specifications: Input voltage: 180 to 264 VAC Efficiency: 94% Output voltages: 24V and 48V (depending on model) Adjustable output voltage: +/- 5% Power: 480W Integrated power factor correction DC OK output contact Protections: overvoltage, overcurrent, short circuit Metal housing, DIN rail mounting, 7 modules width Screw terminal connections Compliance: CE, RoHs, Reach Standards: EN55032, EN61000-3-2, EN61000-6-2, EN61204-3
