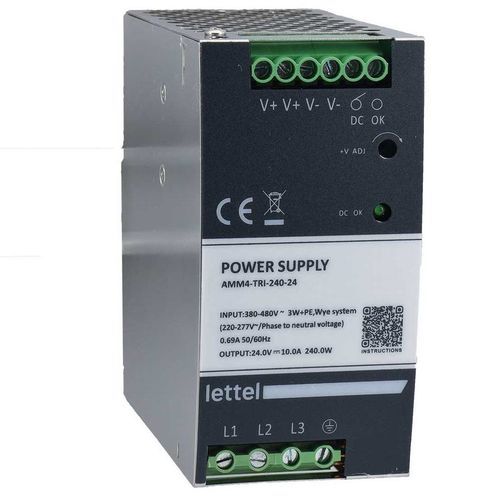

DIN rail power supply AMM4-TRI series

AC/DCstabilizedmultiple-output

The AMM4 three-phase AC/DC stabilized power supply converts alternating current to direct current with a maximum power of 240W: - **Electrical Characteristics:** - Switching power supply for input voltage 340 to 550 VAC. - Connection in two-phase or three-phase. - Output voltages according to models: 24V and 48V. - Output power: - 240W if primary connection on 3 phases - 192W if primary connection on 2 phases. - Efficiency 92%. - DC OK contact output. - **Protection:** - Integrated protection against overvoltage, overcurrent, and short circuits. The secondary cuts off when the input signal goes out of the allowable range. When the input signal returns to the allowable range, the secondary automatically recovers (HICCUP recovery mode). The DC OK contact is closed when the output signal is active. - **Physical Characteristics:** - Metal casing clip-on DIN rail, 4-module width. - Connection by screw terminals. - **Applications:** - Allows converting alternating current to direct current to power devices or circuits that operate on direct current. - **Adjustable Voltage:** - The secondary voltage is adjustable using a front potentiometer. - **Indicator Light:** - A green LED indicates the correct operation of the output. - **Advantages:** - If powered in three-phase, the power supply continues to operate in case of a cut in one of the 3 phases. - **Standards and Certifications:** - Compliances: CE, RoHs, Reach. - Applicable standards: EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1. - UL61010-1/-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16. - BS EN/EN55032(CISPR32), BS EN/EN61000-2-2, 3, 4, 5, 6, 8. - **Associated Products:** - Backup power modules: Complementary modules ensuring the supply of direct current in case of stabilized power supply failure. - **Variants and Order Codes:** - Order Code | Output Voltage | Power | Stocked Product - AMM4-TRI-240-24 | 24 VDC | 240W | instock - AMM4-TRI-240-48 | 48 VDC | 240W | instock - **Features / Technical Specifications:** - Type: Three-phase AC/DC stabilized power supply - Maximum power: 240W (three-phase), 192W (two-phase) - Input voltage: 340 to 550 VAC - Output voltage: 24V or 48V depending on model - Efficiency: 92% - Protection: overvoltage, overcurrent, short circuit, automatic HICCUP recovery - Casing: metal, clip-on DIN rail, 4-module width - Connection: screw terminals - Green LED operation indicator - DC OK contact - Standards: CE, RoHs, Reach, EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1, UL61010-1/-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, BS EN/EN55032(CISPR32), BS EN/EN61000-2-2, 3, 4, 5, 6, 8
