DIN rail power supply AMMHP5 series
AC/DCstabilizedswitching

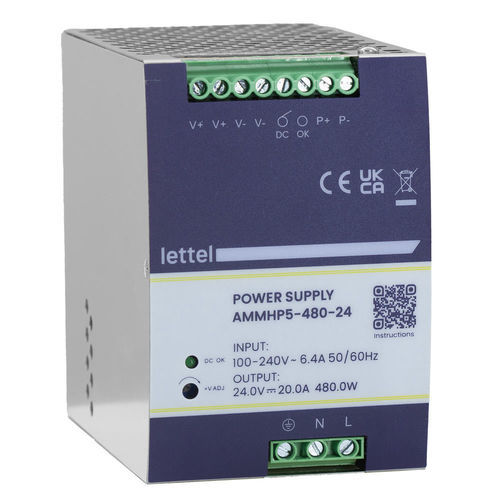

DIN rail power supply - AMMHP5 series - Lettel - AC/DC / stabilized / switching
DIN rail power supply - AMMHP5 series - Lettel - AC/DC / stabilized / switching
Add to favorites
Compare this product
Go to the Lettel website for more information

Characteristics

Mounting / format
DIN rail
Type
AC/DC
Output
stabilized
Technology
switching
Protection
with overcurrent protection, with overload protection, with short-circuit protection
Certifications
CE
Connection
with screw terminal block
Other characteristics
with power factor correction
Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

Min.: 24 V

Max.: 48 V

Power

480 W
(0.65 hp)

Description

The AMMHP5 stabilized AC/DC power supply converts alternating current into direct current with a maximum power of 480W: - Electrical: - Switching power supply for input voltage 90 to 264 VAC. - Efficiency 94%. - Output voltages depending on model: 24V and 48V. - Output voltage adjustable by +/- 5%. - Power: 480W. - Integrated power factor correction. - DC OK output contact. - Protection: - The stabilized AC/DC power supplies have integrated protection against overvoltage, overcurrent, and short circuits. The secondary is cut off when the input signal goes out of the permissible range. - When the input signal returns to the permissible range, the secondary is automatically restored (HICCUP recovery mode). - Physical: - Metal housing, clip-on DIN rail mounting, width 5 modules. - Connection by screw terminals. - Applications: - Stabilized AC/DC power supplies allow the conversion of alternating current into direct current to power devices or circuits that operate on direct current. - DC OK output contact: - The DC OK contact is closed when the power supply is active and opens in case of secondary signal interruption, thus allowing an alert in case of abnormal situation or device failure. - Adjustable voltage: - The secondary voltage is adjustable +/- 5% using a potentiometer located on the front of the device. - Indicator light: - A green LED indicates correct output operation. - Compliance: - CE, RoHs, Reach. - Applicable standards: - EN55032, EN61000-3-2, EN61000-6-2, EN61204-3. - Technical notebooks: - Learn more about Lettel stabilized AC/DC power supplies - Associated products: - Backup power supply modules: Additional modules to ensure the supply of direct current in case of failure of the stabilized power supply. - Technical features / specifications: - Type: Stabilized AC/DC power supply - Model: AMMHP5 - Input voltage: 90 to 264 VAC - Output voltage: 24V or 48V DC (adjustable +/- 5%) - Power: 480W - Efficiency: 94% - Integrated power factor correction - DC OK output contact - Protections: Overvoltage, overcurrent, short-circuit, automatic recovery (HICCUP mode) - Mounting: DIN rail, 5 modules wide - Connection: Screw terminals - Compliance: CE, RoHs, Reach - Standards: EN55032, EN61000-3-2, EN61000-6-2, EN61204-3
Go to the Lettel website for more information
