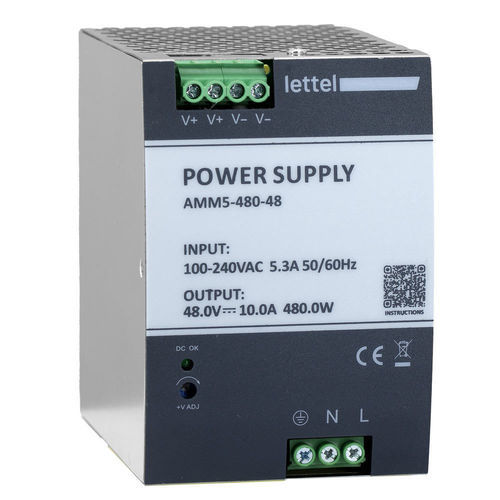

DIN rail power supply AMM5 series

AC/DCstabilizedswitching

The AMM5 stabilized AC/DC power supply converts alternating current into direct current with a maximum power of 480W:Electrical:Switching power supply for input voltage 90 to 264 VAC.92% efficiency on all models.Output voltages depending on model: 24V and 48V.The output voltage is adjustable by +/- 5%.Power: 480W.Protection:The stabilized AC/DC power supplies have built-in protection against overvoltage, overcurrent, and short circuits. The secondary is cut off when the input signal goes out of the permissible range.When the input signal returns to the permissible range, the secondary is automatically restored (HICCUP recovery mode).Physical:Metal housing, DIN rail mountable, width 5 modules.Connection by screw terminals.Applications:Stabilized AC/DC power supplies allow the conversion of alternating current into direct current to power devices or circuits that operate on direct current.Adjustable voltage:The secondary voltage is adjustable +/- 5% using a potentiometer located on the front of the device.Status indicator:A green LED indicates correct output operation.Compliance:CE, RoHs, Reach.Applicable standards:EN55032, EN61000-3-2, EN61000-6-2, EN61204-3.Technical notebooks:Learn more about Lettel stabilized AC/DC power suppliesAssociated products:Backup power supply modules to ensure the supply of direct current in case of failure of the stabilized power supply:Access the pageVariants and order codes
