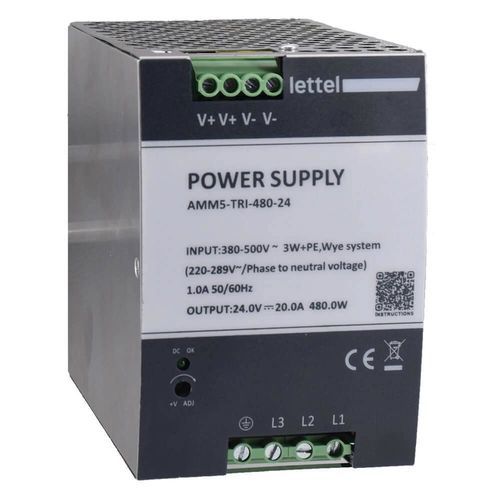

DIN rail power supply AMM5-TRI series

AC/DCmultiple-outputvariable-output

The AMM5 three-phase AC/DC stabilized power supply converts alternating current into direct current with a maximum power of 480W. - **Electrical:** - Switching power supply for primary voltage 340 to 550 VAC. - Efficiency 92%. - Output voltages depending on models: 24V and 48V. - Power of 480W. - **Protection:** - The stabilized AC/DC power supplies have built-in protection against overvoltage, overcurrent, and short circuits. The secondary cuts off when the input signal goes out of the allowable range. When the input signal returns to the allowable range, the secondary automatically recovers (HICCUP recovery mode). - **Physical:** - Metal casing clip-on DIN rail, width 5 modules. - Connection via screw terminals. - **Applications:** - The stabilized AC/DC power supplies convert alternating current into direct current to power devices or circuits that operate on direct current. - **Adjustable Voltage:** - The secondary voltage is adjustable using a front panel potentiometer. - **Indicator Light:** - A green LED indicates correct output operation. - **Power Supply on 2 Phases:** - In case of a power failure on one of the 3 phases, the stabilized power supply continues to operate on 2 phases. - **Compliance:** - CE, RoHs, Reach. - **Applicable Standards:** - EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1. - UL61010-1/-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16. - BS EN/EN55032(CISPR32), BS EN/EN61000-2-2, 3, 4, 5, 6, 8. - **Variants and Order Codes:** - AMM5-TRI-480-24: 24 VDC, 480W, in stock - AMM5-TRI-480-48: 48 VDC, 480W, in stock - **Features / Technical Specifications:** - Type: Three-phase AC/DC stabilized power supply - Power: 480W - Input voltage: 340 to 550 VAC - Output voltage: 24V or 48V depending on model - Efficiency: 92% - Metal casing, DIN rail mounting (5 modules) - Protection: overvoltage, overcurrent, short circuit, automatic recovery (HICCUP mode) - Adjustable output voltage via potentiometer - LED operation indicator - Compliance: CE, RoHs, Reach - Standards: EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1, UL61010-1/-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, BS EN/EN55032(CISPR32), BS EN/EN61000-2-2, 3, 4, 5, 6, 8
