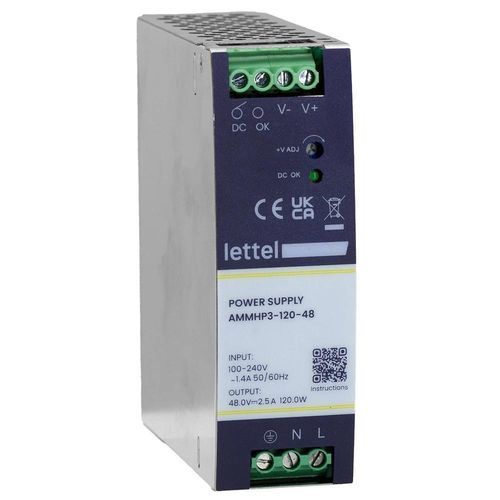

DIN rail power supply AMMHP3 series

AC/DCstabilizedswitching

The AMMHP3 stabilized AC/DC power supply converts alternating current into direct current with a maximum power of 150W: - Electrical: - Switching power supply. - Input voltage: 90 to 264 VAC. - Efficiency: 91%. - Output voltages: 24 and 48V (depending on model). - Adjustable output voltage of +/- 5%. - Power: 120W. - Integrated power factor correction. - DC OK output contact. - Protection: - The stabilized AC/DC power supplies have integrated protection against overvoltage, overcurrent, and short circuits. - The secondary is cut off when the input signal goes out of the allowable range. - When the input signal returns to the allowable range, the secondary is automatically restored (HICCUP recovery mode). - Physical: - Metal housing, DIN rail mountable, 3-module width. - Connection via screw terminals. - Applications: - Stabilized AC/DC power supplies convert AC to DC to power devices or circuits that operate on DC. - DC OK Output Contact: - The DC OK contact is closed when the power supply is active and opens in case of secondary signal interruption, allowing alert in case of abnormal situation or device failure. - Adjustable Voltage: - The secondary voltage is adjustable +/- 5% using a potentiometer located at the connection terminals. - Indicator Light: - A green LED indicates correct output operation. - Compliance: - CE, RoHs, Reach. - Applicable Standards: - EN55032, EN61000-3-2, EN61000-6-2, EN60124-3. - Technical Notebooks: - All about Lettel stabilized AC/DC power supplies - Associated Products: - Backup power modules to ensure DC supply in case of stabilized power supply failure. - Variants and Order Codes: - Order Code: AMMHP3-120-24, Output Voltage: 24 VDC, Power: 120W, Stocked Product: In stock - Order Code: AMMHP3-120-48, Output Voltage: 48 VDC, Power: 120W, Stocked Product: In stock - Technical Specifications: - Switching power supply - Input voltage: 90 to 264 VAC - Efficiency: 91% - Output voltages: 24V or 48V (depending on model) - Adjustable output voltage: +/- 5% - Power: 120W - Integrated power factor correction - DC OK output contact - Integrated protection: overvoltage, overcurrent, short-circuit - Automatic recovery (HICCUP mode) - Metal housing, DIN rail mountable (3 modules) - Screw terminal connections - Compliance: CE, RoHs, Reach - Standards: EN55032, EN61000-3-2, EN61000-6-2, EN60124-3
