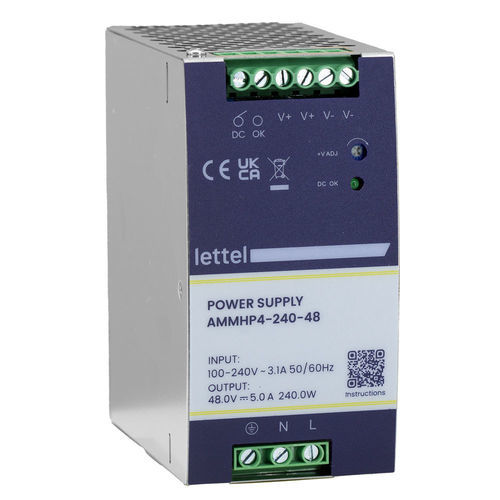

DIN rail power supply AMMHP4 series

AC/DCstabilizedswitching

The AMM4 stabilized AC/DC power supply converts alternating current to direct current with a maximum power of 240W. - **Electrical Features:** - Switching power supply for input voltage 90 to 264 VAC. - Efficiency 93%. - Output voltages according to models: 24V and 48V. - Output voltage is adjustable by +/- 5%. - Power of 240W. - Integrated power factor correction. - DC OK output contact. - **Protection:** - Integrated protection against overvoltage, overcurrent, and short circuits. - The secondary cuts off when the input signal goes out of the allowable range. - Automatic recovery of the secondary when the input signal returns to the allowable range (HICCUP recovery mode). - **Physical Characteristics:** - Metal housing clip-on DIN rail, width 4 modules. - Connection by screw terminals. - **Functionalities:** - Applications: conversion of alternating current to direct current to power devices or circuits operating on direct current. - DC OK output contact: closed when the power supply is active, opens in case of secondary signal cut to alert in case of abnormal situation or failure. - Adjustable voltage: adjustable +/- 5% via a potentiometer located at the connection terminals. - Indicator light: a green LED signals the correct operation of the output. - **Standards and Certifications:** - Compliances: CE, RoHs, Reach. - Applicable standards: EN55032, EN61000-3-2, EN61000-6-2, EN61204-3. - **Variants and Order Codes:** - Order Code: AMMHP4-240-24, Output Voltage: 24 VDC, Power: 240W, Product in stock - Order Code: AMMHP4-240-48, Output Voltage: 48 VDC, Power: 240W, Product in stock - **Additional Resources:** - Learn more about Lettel stabilized AC/DC power supplies
