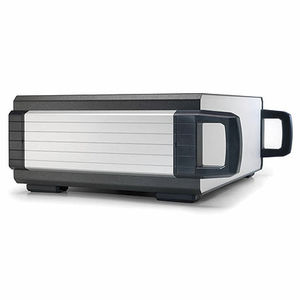

Desktop housings are available in different sizes and types. They offer designer aesthetics for interior applications.
Your advantages:
- Generously dimensioned, comfortable control and interface panels.
- Ergonomic shape.
- The PCBs can be fitted on both sides with interfaces that project beyond the actual width of the case.
- Non-slip pads for secure table top applications.
- Easy mounting.
- Comprehensive range of accessories.
|
|
ratiopacPRO / -air
- Case with 19"-compatible dimensions
- Identical front and rear structure (symmetrical)
- Identical space for boards in all versions
- EMC shielding optional via gaskets
- Suitable for extraction handles complying with IEEE 1101.10/11 for CompactPCI and VME 64x applications
propac
- Desktop case or portable case p case or portable
- Design alternative for compac
- Degree of protection IP 20
- EMC shielding optional via gaskets
- Extensive accessories, for portable applications
- High stability
compac
- Desktop case or portable case
- Degree of protection IP 20
- High stability, configured for portable application
- Identical front and rear structure
comptec
- Can support 19" subracks
- Height 3 U to 12 U
- Degree of protection IP 20
- High stability
- Identical front and rear structure (symmetrical)
- With protective earth connection
|
|
Sturdy, flexible and portable, modular, elegant design, EMC, IP, Handles & Feets i. e. for the use in Test & Measurement. General electronic packaging and medical industries.
|
|
|
|
|
|
The KM6 Caseframe is designed for applications that require the mounting / housing of Eurocard-style electronics (cards or modules) in either a 19” rackmount or desktop formfactor. A step up from a standard subrack, its design requires no external housing, and offers optional EMC protection along with the integration of cooling fans and power supplies in a self contained, attractive unit. A range of accessories are available including Tilt Feet, Carry Handles, Fan Trays and Hinged Front / Rear Covers, allowing the requirements of many applications to be met with standard off-the shelf parts. The use of standard KM6 subrack components means that the KM6 Caseframe can accept most accessories from our KM6-II product range, including, for example, card guides, front panels and plug-in units. The top and bottom covers are easily removed for system building and servicing requirements.
Accessories A wide range of accessories support our four main subrack families. The majority of items are compatible with all platforms; each subrack variant also has its own dedicated range of support products.
* Plug-in modules and front panels
* Card Guides
* Divider kits
* Top and bottom covers
* Thermal management products
|
|
|
Km-Gehäusetech is a product group within Richard WÖhr GmbH and developed by assumption of the Km-Gehäusetech GmbH & CO. Kg, Villingen Schwenningen, by Richard Wöhr GmbH in yards. The product range covers a variety to standard and customized plastic and aluminum housings, which lead in combination with Foientastaturen, electronic construction units and refined accessories to intelligent, custom-made solutions.
|
|
INTERTEC instrument enclosures are made of long fibre reinforced polyester (GRP) in sheet moulded compound design. The enclosures are very strong and have an excellent chemical resistance. They are therefore preferred in chemical industry and raffineries.
INTERTEC offers worldwide the largest range of instruments enclosures as well as the corresponding mounting systems.
|
|
| ... products without technical information |
| |
CARDMASTER range is ideal for packaging instrumentation, measurement, monitoring and process control equipment. It provides two compartments - one for circuit boards and sensors with slots for printed circuit board insertion, and another one for terminal and wiring. All sizes are available in both polycarbonate and ABS.
Dimensions range from 166*160*80 mm to 390*316*167 mm.
PC: IP 65; IK 07/08; NEMA Type 1, 4, 4X, 12 and 13; UL 94-5V; UL 508
ABS: IP 65; IK 07; NEMA Type 1, 4, 4X, 12 and 13; UL 94-HB
|
|
Description

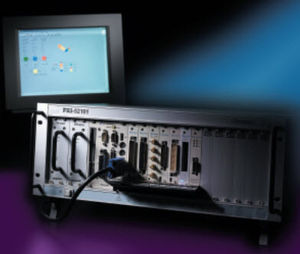

The GX7600 Series mainframes are compact, 9-slot PXI chassis that can accommodate up to 8 instruments as well as an embedded single slot PXI Express controller such as the GX7940 or a PXI Express external bus controller such as the x1 or x4 MXI - PXI Express interface. The GX7600’s compact 3U form-factor occupies only 9x18 inches of bench space, making it ideal for benchtop or space constrained applications. And when combined with 8 peripheral slots, integral Smart functions, and the bandwidth of PXI Express, the GX7600 represents a new level of performance, capabilities and value for PXI mainframes.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
A range of multi function products specifically designed to suit the requirements of all combined heat and power, co-generation, diesel and gas engine generator applications. This high quality product portfolio offers the generator set manufacturer and panel builder a flexible mix of contemporary and traditional products, including a comprehensive range of generator set controllers, integrated digital power metering, and a one stop solution package of measurement, protection and control instrumentation.
|
|
The Model 9717 is a high-resolution incremental encoder
that offers direct measurement of linear position or speed
without contact between the reading head and the glass scale.
When used with the optional HR2B or HR2C interpolator,
its optical resolution can be electronically increased and the output provided as quadrature square waves plus index from RS422 differential line drivers.
|
|
|
|
