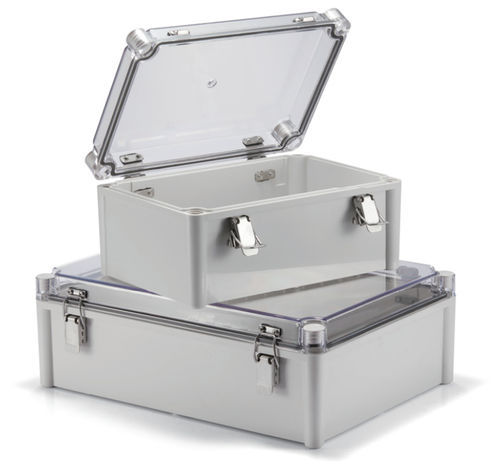

Wall-mount enclosure P series

paneldesktoprectangular

Plastic enclosure P series MAIN TECHNICAL FEATURES Resistance:chemical agents,alkali,olis,salts,etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) IP degree: IP 66 IK degree: IK 08 Color: RAL7035 grey(other colours on request) CE, ROHS Mounting plate: galvanised steel plate or plastic plate(separate supply) wall mount brackets: stainless steel AISI 304(separately supply) flame retardant UL94V-0 high heat resistant ABS or PC material(on request) W H D(mm) product code(grey cover) product code(transparent cover) plastic mounting plate galvanised plate 1 50 * 65 * 55 P-5065 P-5065W PP-5065 GP-5065 2 65 * 95 * 55 P-6595 P-6595W --- --- 3 80 * 80 * 60 P-8080 P-8080W PP-8080 GP-8080 4 80 * 110 * 70 P-80110 P-80110W PP-80110 GP-80110 5 80 * 110 * 85 P-80110 P-80110W PP-80110 GP-80110 6 80 * 130 * 70 P-80130 P-80130W PP-80130 GP-80130 7 80 * 160 * 55 P-80160 P-80160W PP-80160 GP-80160 8 80 * 160 * 90 P-80160 P-80160W PP-80160 GP-80160 9 80 * 180 * 70 P-80180 P-80180W PP-80180 GP-80180 10 80 * 180 * 85 P-80180 P-80180W PP-80180 GP-80180 11 80 * 250 * 70 P-80250 P-80250W PP-80250 GP-80250 12 80 * 250 * 85 P-80250-1 P-80250-1W PP-80250 GP-80250 13 100 * 100 * 80 P-100100 P-100100W PP-100100 GP-100100 14 100 * 100 * 100 P-100100-1 P-100100-1W PP-100100 GP-100100 15 125 * 125 * 75 P-125125 P-125125W PP-125125 GP-125125 16 125 * 125 * 100 P-125125-1 P-125125-1W PP-125125 GP-125125 17 125 * 175 * 75 P-125175 P-125175W PP-125175 GP-125175 18 125 * 175 * 100 P-125175-1 P-125175-1W PP-125175 GP-125175 19 140 * 170 * 95 P-140170 P-140170W PP-140170 GP-140170 20 140 * 230 * 90 P-140230 P-140230W PP-140230 GP-140230 21 150 * 200 * 100 P-150200 P-150200W PP-150200 GP-150200 22 150 * 200 * 130 P-150200-1 P-150200-1W PP-150200 GP-150200 23 150 * 250 * 100 P-150250 P-150250W PP-150250 GP-150250 24 150 * 250 * 130 P-150250-1 P-150250-1W PP-150250 GP-150250 25 175 * 175 * 75 P-175175 P-175175W PP-175175 GP-175175 26 175 * 175 * 100 P-175175-1 P-175175-1W PP-175175 GP-175175 27 175 * 250 * 75 P-175250 P-175250W PP-175250 GP-175250 28 175 * 250 * 100 P-175250-1 P-175250-1W PP-175250 GP-175250 29 200 * 200 * 95 P-200200 P-200200W PP-200200 GP-200200 30 200 * 200 * 130 P-200200-1 P-200200-1W PP-200200 GP-200200 31 200 * 250 * 100 P-200250 P-200250W PP-200250 GP-200250
