- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

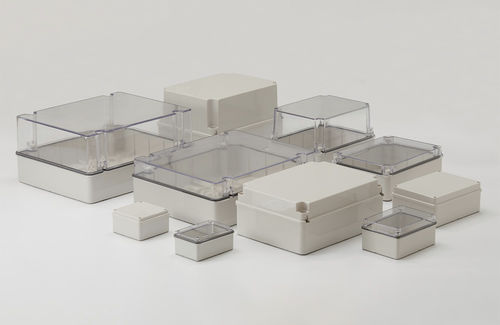

Wall-mount enclosure A seriesrectangularABSpolycarbonate
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- ABS, polycarbonate
- Application
- industrial, indoor, electronic equipment, outdoor, for electronics
- Protection level
- IK 08, halogen-free, NEMA, UV-resistant, flame-retardant, heat-resistant, IP55
- Other characteristics
- small-size, sealed
- Width
Max.: 380 mm
(15 in)Min.: 80 mm
(3.1 in)- Height
Max.: 300 mm
(11.8 in)Min.: 120 mm
(4.7 in)- Depth
Max.: 165 mm
(6.5 in)Min.: 54 mm
(2.13 in)
Description
Plastic enclosure
A series
Main Technical Features:
- Resistance: chemical agents, alkali, oils, salts, etc.
- Rated voltage: up to 690V
- Maximum current: up to 800A
- Operating temperature: -40℃ to +120℃
- Material: HB ABS halogen free (Polycarbonate PC on request)
- Mounting plate: galvanised steel 1.2mm (separate supply)
- IP degree: IP55
- IK degree: IK 08
- Color: RAL7035 grey (other colours on request)
- CE, ROHS flame retardant UL94V-0 high heat resistant ABS or PC material (on request)
Dimensions and Product Codes:
- Dimensions (mm) | Product Code (grey cover) | Steel Mounting Plate
- 80*120*54 | A-80120 | GP-80120
- 100*100*54 | A-100100 | GP-100100
- 110*150*72 | A-110150 | GP-110150
- 140*190*76 | A-140190 | GP-140170
- 190*240*95 | A-190240 | GP-190240
- 190*240*165 | A-190240-1 | GP-190240
- 220*300*125 | A-220300 | GP-220300
- 300*380*125 | A-300380 | GP-300380
