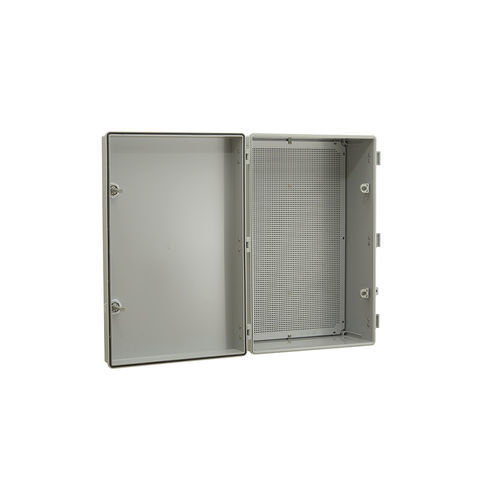

Wall-mount enclosure K series

rectangularplasticABS

MAIN TECHNICAL FEATURES - Resistance: chemical agents, alkali, oils, salts, etc. - Rated voltage: up to 690V - Maximum current: up to 800A - Operating temperature: -40℃ to +120℃ - Material: HB ABS halogen free (Polycarbonate PC on request) - Wall mount brackets: plastic wall hoops 4pcs/set - IP degree: IP 66 - IK degree: IK 08 - Color: RAL7035 grey (other colours on request) - Certifications: CE, ROHS Mounting plate: galvanised steel plate 1.5mm (separate supply) flame retardant UL94V-0 high heat resistant ABS or PC material (on request) Electrical plastic switch box with locks and clips dimensions(mm) product code(grey cover) Product codeTransparent cover internal door Plastic mounting plate Steel mounting plate 300*200*160 K-3020 K-3020W KID-3020 PP-32K GP-32K 300*200*170 K-3020 K-3020W KM-3020 400*300*160 K-4030 K-4030W KID-4030 PP-43K GP-43K 400*300*170 K-4030-1 K-4030-1W 400*300*180 K-4030-2 K-4030-2W 500*400*200 K-5040 K-5040W KID-5040 PP-54K GP-54K 600*500*220 K-6050 K-6050W KID-6050 PP-65K GP-65K 800*600*250 K-8060 K-8060W KID-8060 PP-86K GP-86K
