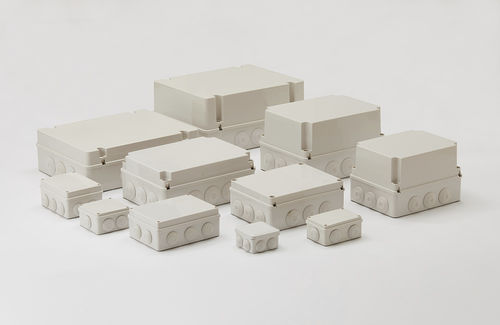

Distribution electrical enclosure A series

controlswitchingDIN rail

Plastic enclosure A series-with gland holes MAIN TECHNICAL FEATURES * An electrical plastic switch box is a housing unit designed to enclose electrical switches and wiring components. * It is typically made of durable plastic materials such as polycarbonate or ABS (Acrylonitrile Butadiene Styrene) * to provide insulation, protection against environmental factors, and safety for electrical connections. * These switch boxes are commonly used in residential, commercial, and industrial settings to house * light switches, dimmers, outlets, and other electrical devices. * They come in various shapes and sizes to accommodate different types of switches and wiring configurations. Resistance:chemical agents,alkali,olis,salts,etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) Mounting plate: galvanised steel 1.2mm(separate supply) IP degree: IP55 IK degree: IK 08 Color: RAL7035 grey(other colours on request) CE, ROHS Flame retardant UL94V-0 high heat resistant ABS or PC material(on request) dimensions(mm) product code(grey cover) Steel mounting plate NO. of cable holes 1 89*89*50 A-8989K --- 7 2 80*120*54 A-80120K GP-80120 6 3 100*100*54 A-100100K GP-100100 6 4 110*150*72 A-110150K GP-110150 10 5 140*190*76 A-140190K GP-140170 10 6 190*240*95 A-190240K GP-190240 12 7 190*240*165 A-190240-1K GP-190240 12 8 220*300*125 A-220300K GP-220300 12 9 300*380*125 A-300380K GP-300380 12
