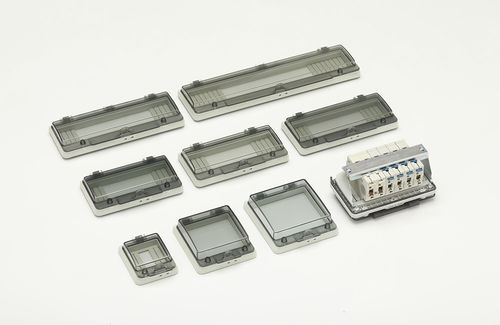

Wall-mount enclosure WH series

rectangularsquareplastic

Plastic window hood MAIN TECHNICAL FEATURES Resistance:chemical agents,alkali,olis,salts,etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) IK degree: IK 08 CE, ROHS Product code dimensions(mm) W H D W1 H1 W2 H2 WH-2P 57*100*28 57 100 28 38 76 36.2 46 WH-3P 75*100*28 75 100 28 56 76 54.2 46 WH-4P 93*100*28 93 100 28 74 76 72.2 46 WH-6P 124*100*28 124 100 28 105 76 108.2 46 WH-8P 160*100*28 160 100 28 141 76 144.2 46 WH-10P 196*100*28 196 100 28 177 76 180.2 46 WH-12P 232*100*28 232 100 28 216.2 76 213 46 WH-13P 250*100*28 250 100 28 231 76 234.2 46 WH-16P 304*100*28 304 100 28 282 76 288.2 46 WH-18P 340*100*28 340 100 28 318 76 324.2 46 WH-24P 448*100*28 448 100 28 437.5 76 426 46 WH-86 107*124*32 107 124 32 88 101.8 86.2 86.5 WH-100 120*142*32 120 142 32 101.5 116 101 101.5 WH-144 149*175*32.5 149 175 32.5 146 124 154 106 Rail to fix MCB on the plastic window hood Model:CBB-001
