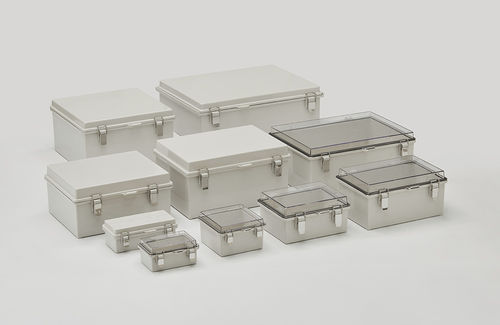

Distribution electrical enclosure Z series

controlwall-mountedvertical

YPlastic enclosure Z series MAIN TECHNICAL FEATURES Resistance:chemical agents,alkali,olis,salts,etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) IP degree: IP 66 IK degree: IK 08 Color: RAL7035 grey(other colours on request) CE, ROHS Mounting plate: galvanised steel plate or plastic plate(separate supply) wall mount brackets: stainless steel AISI 304(separate supply) flame retardant UL94V-0 high heat resistant ABS or PC material(on request) Electrical plastic switch box with S.S.hinges and clasps dimensions(mm) product code(grey cover) Product codeTransparent cover Plastic mounting plate galvanised mounting plate 120*90*70 Z-1209 Z-1209W PP-1209 GP-1209 150*100*70 Z-1510 Z-1510W PP-1510 GP-1510 150*100*90 Z-1510 Z-1510W PP-1510 GP-1510 150*150*90 Z-1515 Z-1515W PP-1515 GP-1515 210*110*75 Z-2111 Z-2111W PP-2111 GP-2111 210*110*90 Z-2111-1 Z-2111-1W PP-2111 GP-2111 210*160*100 Z-2116 Z-2116W PP-2116 GP-2116 220*170*110 Z-2217 Z-2217W PP-2217 GP-2217 260*110*75 Z-2611 Z-2611W PP-2611 GP-2611 260*160*100 Z-2616 Z-2616W PP-2616 GP-2616 290*190*140 Z-2919 Z-2919W PP-2919 GP-2919 300*200*130 Z-3020 Z-3020W PP-3020 GP-3020 300*300*180 Z-3030 Z-3030W PP-3030 GP-3030 350*250*150 Z-3525 Z-3525W PP-3525 GP-3525 380*280*130 Z-3828 Z-3828W PP-3828 GP-3828 465*350*160 Z-4635 Z-4635W PP-4635 GP-4635
