- Wall-mounted junction box
- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

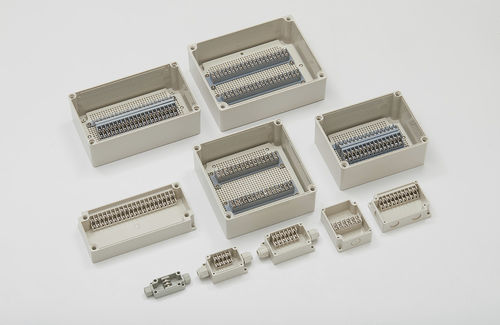

Wall-mounted junction box J seriescorrosion-resistantUV-resistantIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- corrosion-resistant, UV-resistant, IEC, fire-resistant, chemical-resistant, oil-resistant, IP66, IP65
- Material
- plastic, ABS, polycarbonate
- Applications
- for industrial networks, for the pharmaceutical industry
- Other characteristics
- indoor, with knockouts
- Length / diameter
Min.: 65 mm
(2.6 in)Max.: 250 mm
(9.8 in)65 mm, 91 mm, 102 mm, 110 mm, 125 mm, 223 mm, 250 mm
(2.6 in, 3.6 in, 4 in, 4.3 in, 4.9 in, 8.8 in, 9.8 in)- Width
Min.: 33 mm
(1.3 in)Max.: 150 mm
(5.91 in)33 mm, 50 mm, 55 mm, 100 mm, 150 mm, 200 mm, 223 mm, 250 mm
(1.3 in, 1.97 in, 2.17 in, 3.94 in, 5.91 in, 7.87 in, 8.78 in, 9.84 in)- Depth
Min.: 24 mm
(0.94 in)Max.: 100 mm
(3.94 in)24 mm, 40 mm, 43 mm, 75 mm, 95 mm
(0.94 in, 1.57 in, 1.69 in, 2.95 in, 3.74 in)
Description
MAIN TECHNICAL FEATURES
- Integrated junction box consisting of cable glands and a terminal block.
- Suitable for industrial facilities, power cable joints, relay between motors and/or sensors.
- IP66 protection class with high oil resistant PBT material.
- Resistance: chemical agents, alkali, oils, salts, etc.
- Rated voltage: up to 690V
- Maximum current: up to 800A
- Operating temperature: -40℃ to + 120℃
- Material: HB ABS halogen free (Polycarbonate PC on request)
- IP degree: IP 66
- IK degree: IK 08
- Color: RAL7035 grey (other colours on request)
- CE, ROHS
Caractéristiques / spécifications techniques :
- PRODUCT CODE (grey color) - Dimension (W H D)
- J-3P - 65 x 33 x 24
- JB-4P - 102 x 50 x 40
- JB-6P - 125 x 55 x 40
- JB-6P-C - 91 x 75 x 43
- JB-10P - 110 x 75 x 40
- JB-20P - 223 x 100 x 75
- JB-30P-C - 200 x 200 x 95
- JB-30P-B - 200 x 150 x 100
- JB-40P-C - 250 x 200 x 100
- JB-40P-B - 250 x 150 x 100
