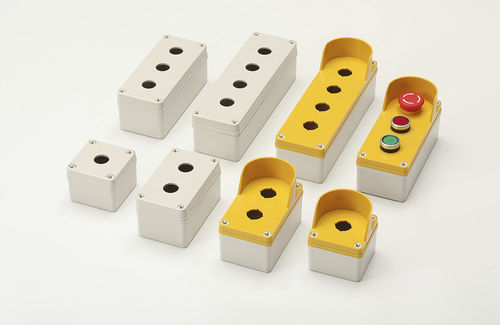

Wall-mount enclosure P seriesrectangularsquareABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular, square
- Material
- ABS, PC
- Application
- industrial, electronic equipment, switch
- Protection level
- waterproof, waterproof, weatherproof, IK 08, weather-resistant, halogen-free, self-extinguishing, IP66
- Other characteristics
- small-size
- Width
Min.: 80 mm
(3.1 in)Max.: 80 mm
(3.1 in)- Height
Min.: 80 mm
(3.1 in)Max.: 250 mm
(9.8 in)- Depth
Min.: 60 mm
(2.36 in)Max.: 70 mm
(2.76 in)
Description
PLASTIC SWITH BOX
MAIN TECHNICAL FEATURES
■ IP66 switch box with 1 ~ 4 Φ22 hole(s) on the top cover.
Resistance:chemical agents,alkali,olis,salts,etc.
Rated voltage: up to 690V
Maximum current: up to 800A
Operating temperature: -40℃ to + 120℃
Material:HB ABS halogen free(Polycarbonate PC on request)
IP degree: IP66 protection class is maintained with waterproof switches and the exclusive cable glands installed.
IK degree: IK 08
Color: RAL7035 grey / orange cover
CE, ROHS
Mounting plate: galvanised steel plate or plastic plate(separate supply)
wall mount brackets: stainless steel AISI 304(separate supply)
flame retardant UL94V-0 high heat resistant ABS or PC material(on request)
product code(grey color) size(mm product code(orange color) size(mm
P0808-1 80X80X60 PY0808-1 80X80X60
P0813-2 80X130X70 PY0813-2 80X130X70
P0818-3 80X180X70 PY0818-3 80X180X70
P0825-4 80X250X70 PY0825-4 80X250X70
